Instrument Panel Lower Trim Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

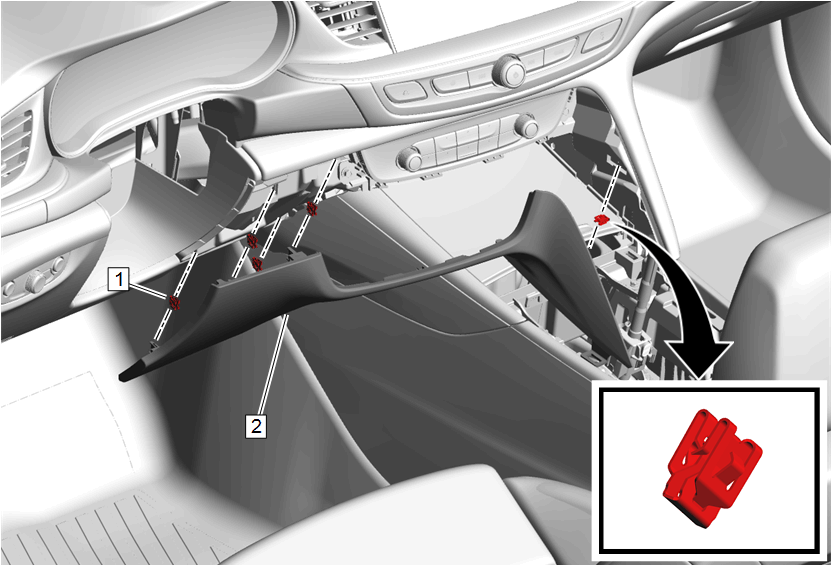

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Floor Console Trim Plate Replacement
1	Instrument Lower Trim Panel Retainer [5x] Procedure  Use a flat bladed plastic tool to remove.
2	Instrument Panel Lower Trim Panel
