Front Fog Lamp Replacement

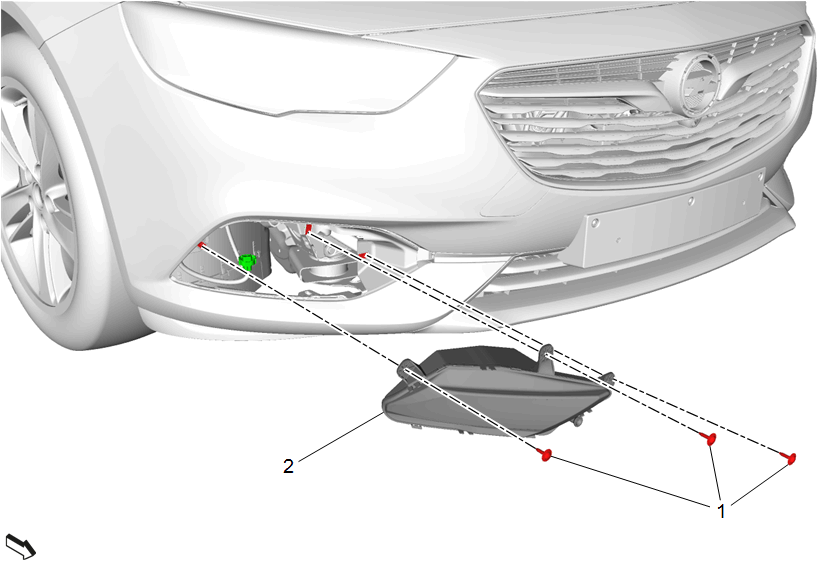

GM4626825
Callout Component Name
Preliminary Procedure
Front Fog Lamp Bezel Replacement (Base)Front Fog Lamp Bezel Replacement (YWC)
1 Front Fog Lamp Bolt [3x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Front Fog Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Replace bulbs as necessary.
