Front Fog Lamp Bezel Replacement (Base)

Courtesy of GENERAL MOTORS COMPANY

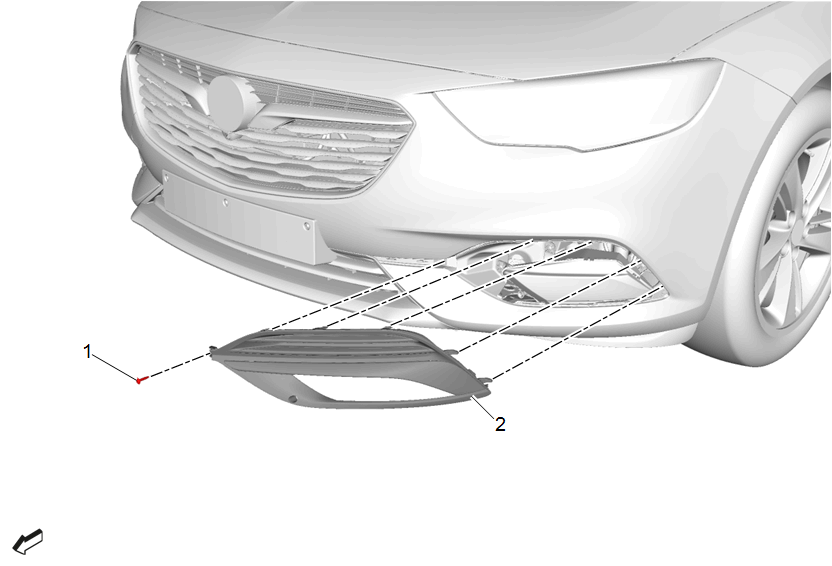

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Lower Molding Replacement (Base)Front Bumper Fascia Lower Molding Replacement (YWC)Front Bumper Fascia Lower Molding Replacement (GS)
1	Front Fog Lamp Opening Cover Bolt CAUTION: Fastener Caution Tighten  2.5N.m (22 lb in)
2	Front Fog Lamp Bezel Procedure  Unlock the retaining tabs. [7x]
