Front Fog Lamp Bezel Replacement (YWC)

Courtesy of GENERAL MOTORS COMPANY

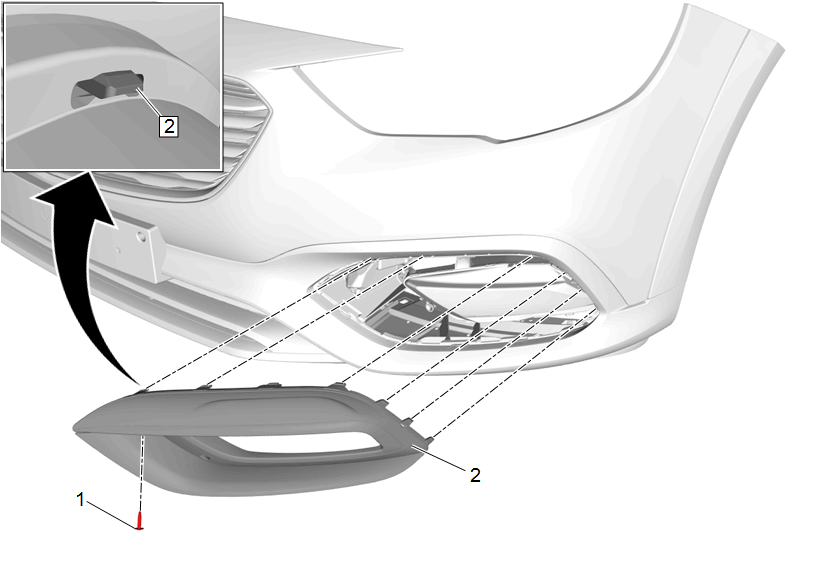

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement
1	Front Fog Lamp Bezel Bolt CAUTION: Fastener Caution Tighten  2.5N.m (22 lb in)
2	Front Fog Lamp Bezel Procedure  Unclip [13x] @ Front Lower Grille
