Transmission Electronic Control Replacement

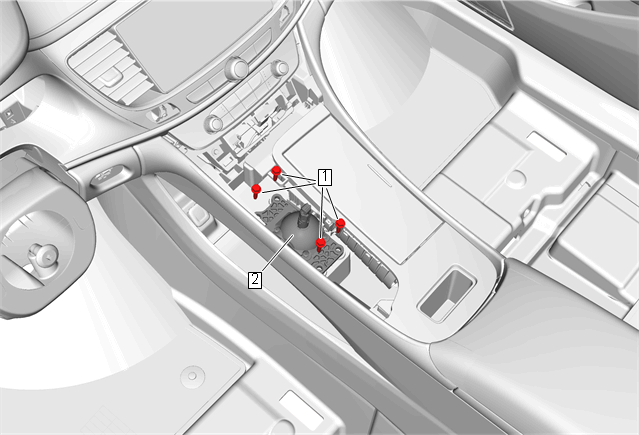

Fig 1: Transmission Electronic Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Floor Console Accessory Trim Plate Replacement Front Floor Panel Plate Replacement
1	Automatic Transmission Electronic Control Bolt CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Automatic Transmission Electronic Control Procedure Disconnect the transmission control module electrical connector.

Callout

Component Name

Preliminary Procedures

Automatic Transmission Electronic Control Bolt

CAUTION:

Tighten
9 N.m (80 lb in)

Automatic Transmission Electronic Control
Procedure
Disconnect the transmission control module electrical connector.
