Front Floor Panel Plate Replacement

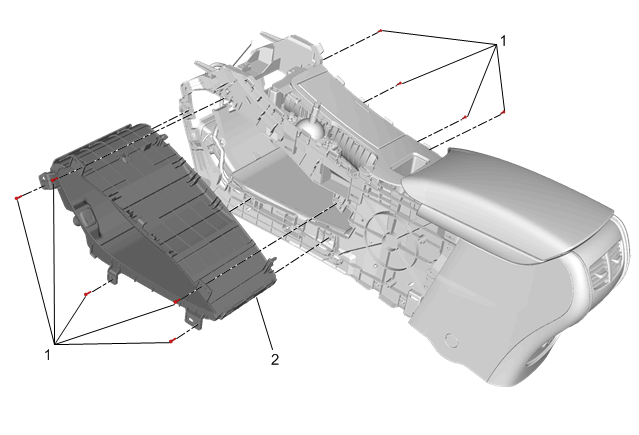

Fig 1: Front Floor Panel Plate
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedure
Front Floor Console Extension Panel Replacement
Accessory Power Receptacle Retainer Replacement
1
Front Floor Console Side Trim Panel Bolt
CAUTION:
Fastener Caution
Tighten
1.5 N.m (13 lb in)
2
Front Floor Panel Plate
Procedure
Disconnect the electrical connector.
