Front Floor Console Accessory Trim Plate Replacement

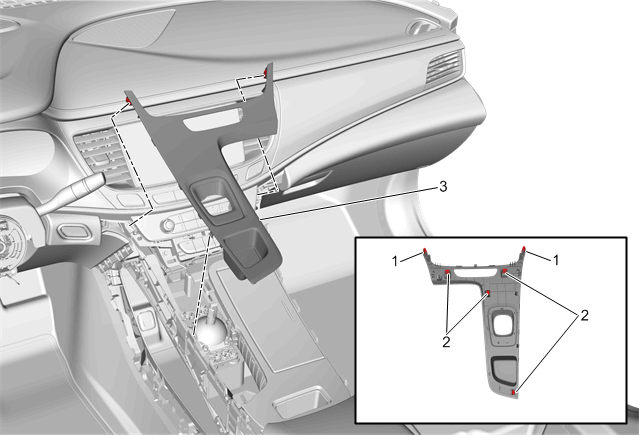

Fig 1: Front Floor Console Accessory Trim Plate
GM4321600Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Front Floor Console Applique Replacement
  2. Transmission Control Lever Knob Replacement
1 Front Floor Console Accessory Trim Plate Clip
2 Front Floor Console Accessory Trim Plate Clip
3 Front Floor Console Accessory Trim Plate
Procedure
Disconnect the electrical connector. (if equipped)
