Front Floor Console Rear Air Duct Replacement

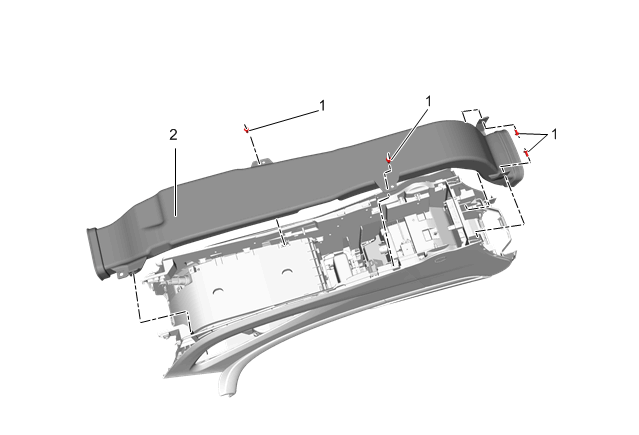

Fig 1: Front Floor Console Rear Air Duct
GM4323941Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Floor Console Replacement
  2. Front Floor Console Rear Trim Panel Replacement
1 Front Floor Console Rear Air Duct Bolt
CAUTION:

Fastener Caution


tighten
2.5 N.m (22 lb in)
2 Front Floor Console Rear Air Front Duct
