Front Floor Console Rear Trim Panel Replacement

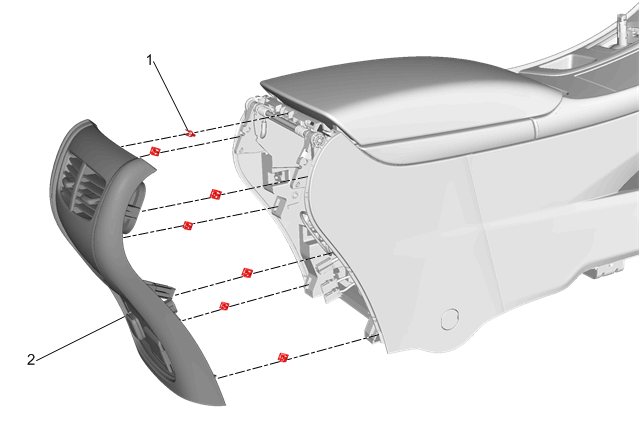

Fig 1: Front Floor Console Rear Trim Panel
GM4447281Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Rear Trim Panel Clip
2 Front Floor Console Rear Trim Panel

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connector.
