Front Floor Console Replacement

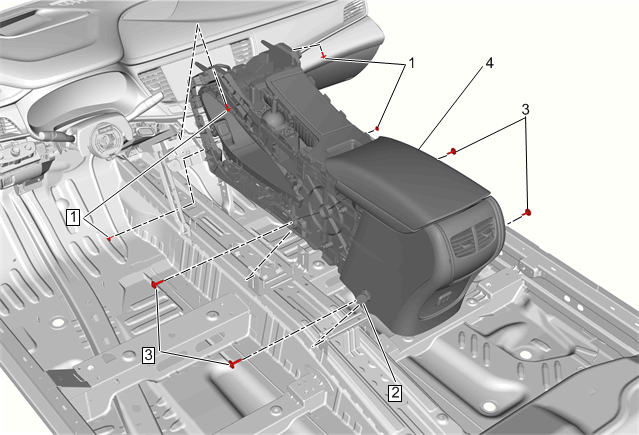

Fig 1: Front Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Floor Console Accessory Trim Plate Replacement Front Floor Console Extension Panel Replacement
1	Front Floor Console Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Extension Panel Bolt Access Hole Cover Procedure Use a flat bladed plastic trim tool.
3	Front Floor Console Bolt Tighten 9 N.m (80 lb in)
4	Front Floor Console Procedure Disconnect the electrical connectors. Transfer components as necessary.
