Front Floor Panel Carpet Replacement - Left Side

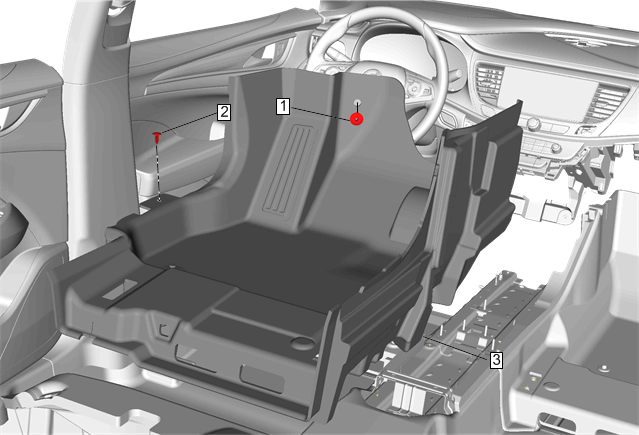

Fig 1: Front Floor Panel Carpet - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Driver or Passenger Seat Removal and Installation Front Side Door Sill Garnish Molding Replacement Center Pillar Lower Trim Panel Replacement Front Floor Console Replacement
1	Floor Carpet Retainer Button Procedure Use a flat bladed plastic trim tool.
2	Floor Carpet Retainer Procedure Use a flat bladed plastic trim tool.
3	Front Floor Panel Carpet
