Center Pillar Lower Trim Panel Replacement

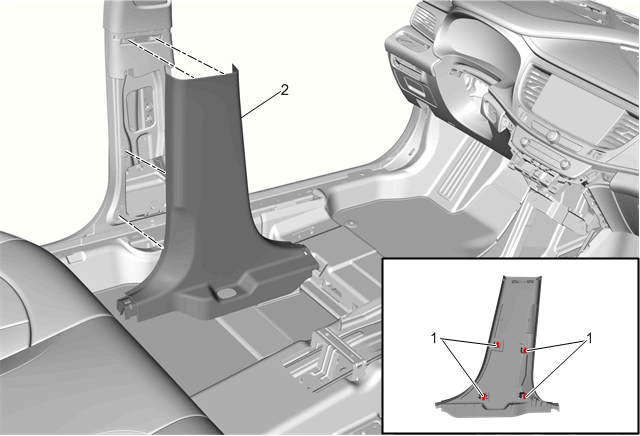

Fig 1: Center Pillar Lower Trim Panel
GM4324875Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Side Door Sill Garnish Molding Replacement
  2. Rear Side Door Sill Garnish Molding Replacement
  3. Front Seat Belt Anchor Plate Bolt@Front Seat Belt Anchor Plate Tensioner Cover - Remove - Front Seat Belt Retractor Replacement
  4. Move the front seat to the full forward position.
1 Center Pillar Lower Trim Panel Clip
2 Center Pillar Lower Trim Panel

Procedure

  1. Pull the center pillar lower trim panel upward to disengage the front seat tensioner assembly.
  2. Ensure the seat belt webbing does not become trapped during installation.
