Instrument Panel Extension Replacement (UV6)

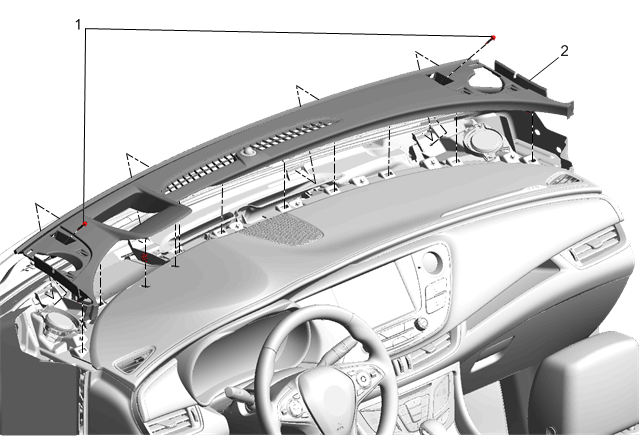

Fig 1: Instrument Panel Extension (UV6)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Radio Front Speaker Grille Replacement Windshield Garnish Molding Replacement
1	Instrument Panel Extension Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . NOTE: The use of a deep well socket may aid in the removal and or installation of the bolt. Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Extension Procedure Use a flat bladed plastic trim tool. Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Instrument Panel Extension Bolt (Qty: 2)

CAUTION:

NOTE:

The use of a deep well socket may aid in the removal and or installation of the bolt.

Tighten
2.5 N.m (22 lb in)

Instrument Panel Extension

Procedure
