Windshield Garnish Molding Replacement

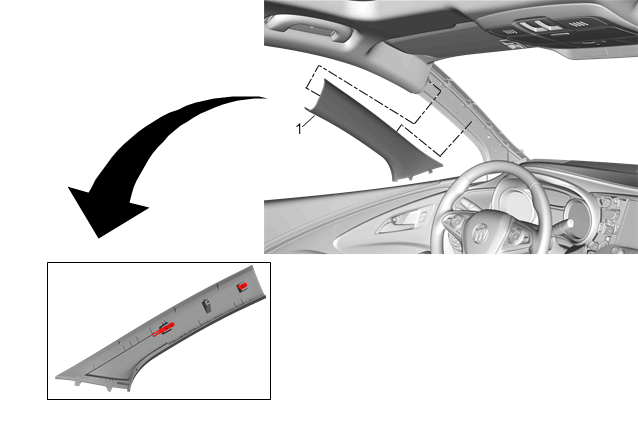

Fig 1: Windshield Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced. CAUTION: Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced. Preliminary Procedure SIR Disabling and Enabling .
1	Windshield Garnish Molding Procedure The tether clip at the center portion of the garnish molding MUST be replaced every time the windshield garnish molding is removed.

Callout

Component Name

CAUTION:

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

CAUTION:

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

Preliminary Procedure SIR Disabling and Enabling .

Windshield Garnish Molding
Procedure
The tether clip at the center portion of the garnish molding MUST be replaced every time the windshield garnish molding is removed.
