Radio Front Speaker Grille Replacement

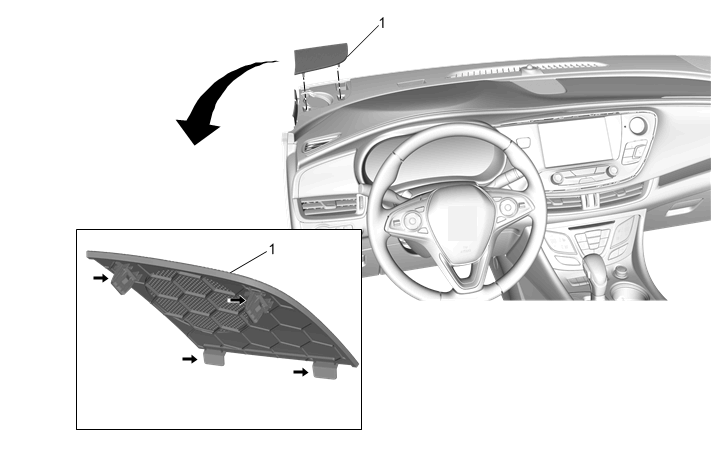

Fig 1: Radio Front Speaker Grille
GM3824793Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Radio Front Speaker Grille

Procedure

  1. Unlock the retaining tabs.
  2. Use a suitable tool.
