Front Floor Console Replacement

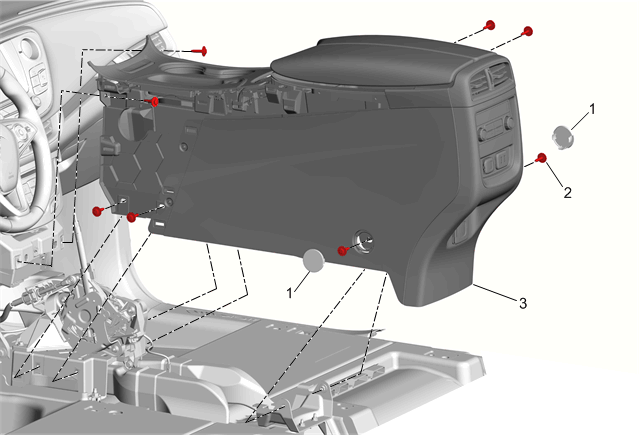

Fig 1: Front Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Shift the transmission into DRIVE. Transmission Control Lever Knob Replacement Front Floor Console Extension Panel Replacement - Left Side Front Floor Console Extension Panel Replacement - Right Side
1	Front Floor Console Bolt Access Hole Cover (Qty: 2) Procedure Use a flat bladed plastic trim tool.
2	Front Floor Console Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
3	Front Floor Console NOTE: When installing the front floor console take care in seating the auxiliary air conditioning air outlet duct to the front floor console rear air duct. Procedures Disconnect electrical connections, if applicable. With the aid of an assistant, lift the floor console rearward and upward away from the instrument panel assembly. Transfer components as necessary.
