Transmission Control Lever Knob Replacement

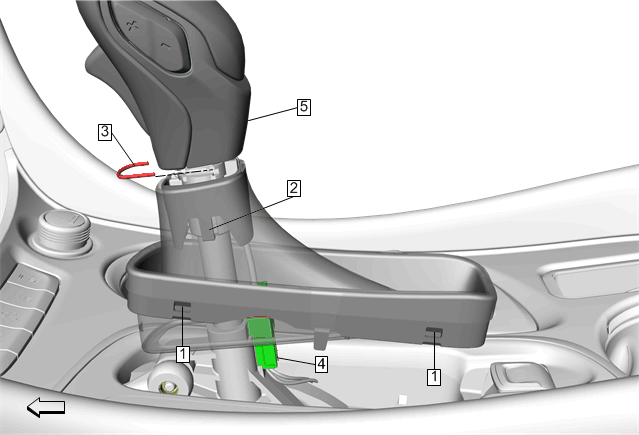

| Callout | Component Name |
|---|---|
| 1 | Transmission Control Lever Knob Trim Plate Retainers (Qty: 4) Procedure Use a flat-bladed plastic trim tool in order to release the retainers from the front floor console. |
| 2 | Retainer
NOTE:
Shift boot shown semi-transparent for component location. Procedure Release the retainer to separate the knob from the boot. |
| 3 | Retainer |
| 4 | Electrical Connector Procedure Disconnect the electrical connector from the shift knob. |
| 5 | Transmission Control Lever Knob |
