Front Floor Console Extension Panel Replacement - Left Side

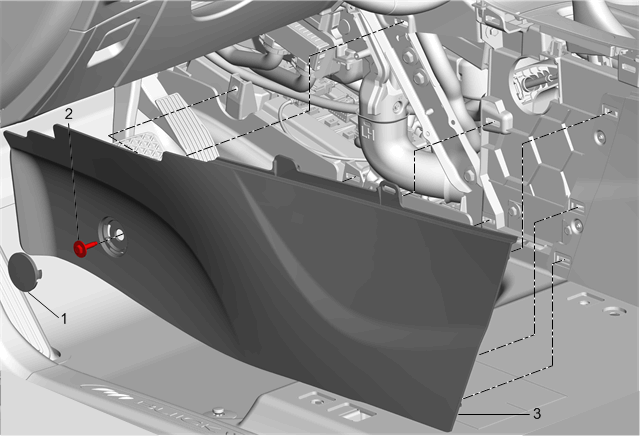

Fig 1: Front Floor Console Extension Panel - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Applique Replacement - Left Side
1	Front Floor Console Bolt Access Hole Cover Procedure Use a flat bladed plastic tool to remove.
2	Front Floor Console Extension Bolt CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
3	Front Floor Console Extension Panel - Left Procedure Move the front seat to access the retainers. Use a flat bladed plastic tool to remove.
