Intake Air Baffle Replacement (LCV)

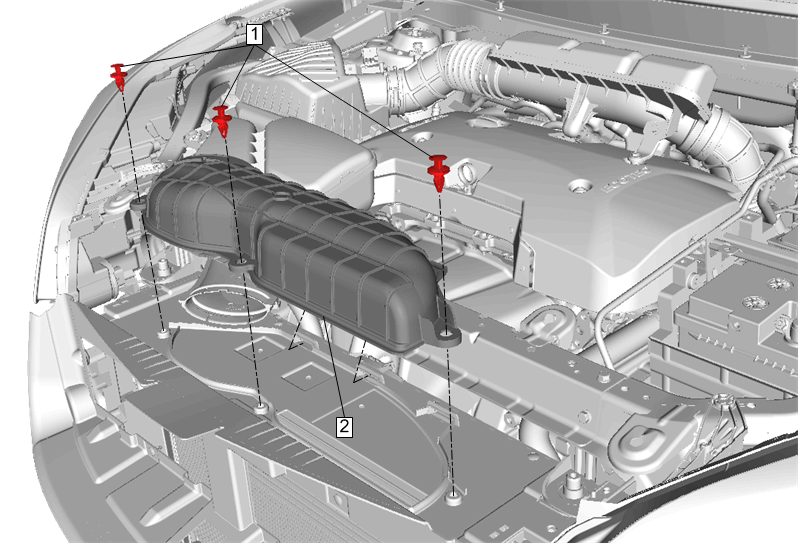

Fig 1: Intake Air Baffle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Front Bumper Fascia Center Support. Refer to Front Bumper Fascia Center Support Replacement Remove Intake Air Duct. Refer to Intake Air Duct Replacement (LCV)
1	Intake Air Baffle Retainer (Qty: 3)
2	Intake Air Baffle

Callout

Component Name

Preliminary Procedures

Remove Front Bumper Fascia Center Support. Refer to Front Bumper Fascia Center Support Replacement
Remove Intake Air Duct. Refer to Intake Air Duct Replacement (LCV)

Intake Air Baffle Retainer (Qty: 3)

Intake Air Baffle
