Intake Air Duct Replacement (LCV)
Intake Air Duct Replacement (LCV)

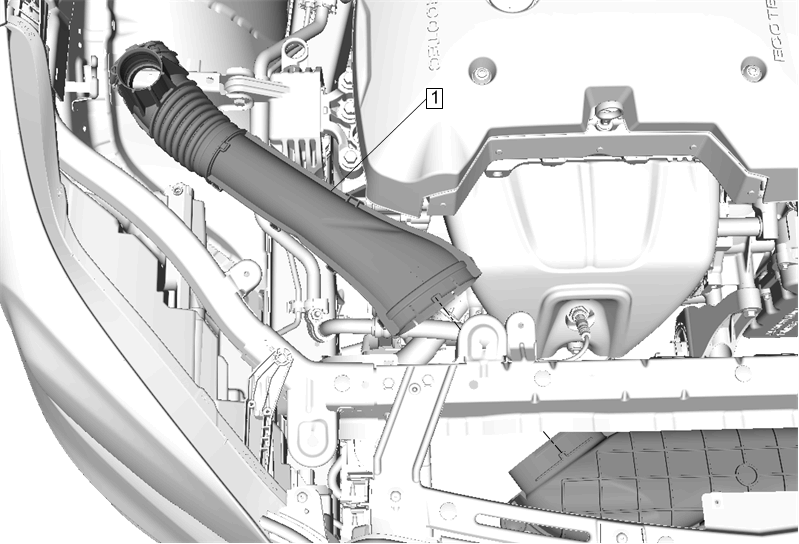

Fig 1: Intake Air Duct
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Remove Front Compartment Front Sight Shield. Refer to
Front Compartment Front Sight Shield Replacement
Remove Intake Air Duct Resonator. Refer to
Intake Air Duct Resonator Replacement (LCV)
Remove Air Cleaner Assembly. Refer to
Air Cleaner Assembly Replacement (LCV)
1
Intake Air Duct
