Front Bumper Fascia Center Support Replacement

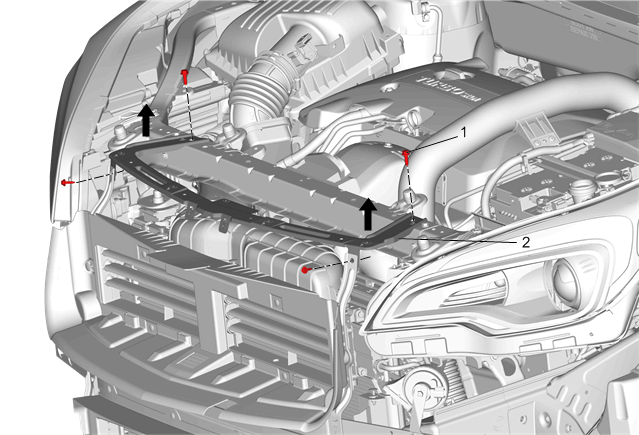

Fig 1: Front Bumper Fascia Center Support
GM3824946Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Bumper Fascia Replacement
  2. Hood Secondary Latch Release Cable Replacement
  3. Remove the 2 upper bolts of the forward range radar bracket. Forward Range Radar Module Replacement
1 Front Bumper Fascia Center Support Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Front Bumper Fascia Center Support
