Installation Procedure

    Fig 1: Evaporative Emission Front Pipe And Retainers
    GM3993470Courtesy of GENERAL MOTORS COMPANY
  1. Connect the evaporative emission front pipe (1) to the retainer (2).
  2. Connect Evaporative Emission Front Pipe (1) @ Fuel Tank. Refer to Plastic Collar Quick Connect Fitting Service

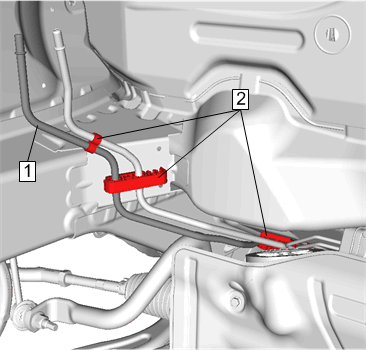

    3. Fig 2: Evaporative Emission Front Pipe And Retainers
    GM4590637Courtesy of GENERAL MOTORS COMPANY
  3. Install Evaporative Emission Front Pipe (1) @ Retainers (2) (Qty: 3)
    4. Fig 3: Fuel Pipe Shield
    GM4175820Courtesy of GENERAL MOTORS COMPANY
  4. Install Fuel Pipe Shield (1)
  5. Lower the vehicle.
  6. Connect Evaporative Emission Canister Purge Solenoid Valve Hose @ Evaporative Emission Front Pipe. Refer to Evaporative Emission Canister Purge Solenoid Valve Hose Replacement (LTG) Evaporative Emission Canister Purge Solenoid Valve Hose Replacement (LCV)
