Evaporative Emission Canister Purge Solenoid Valve Hose Replacement (LCV)

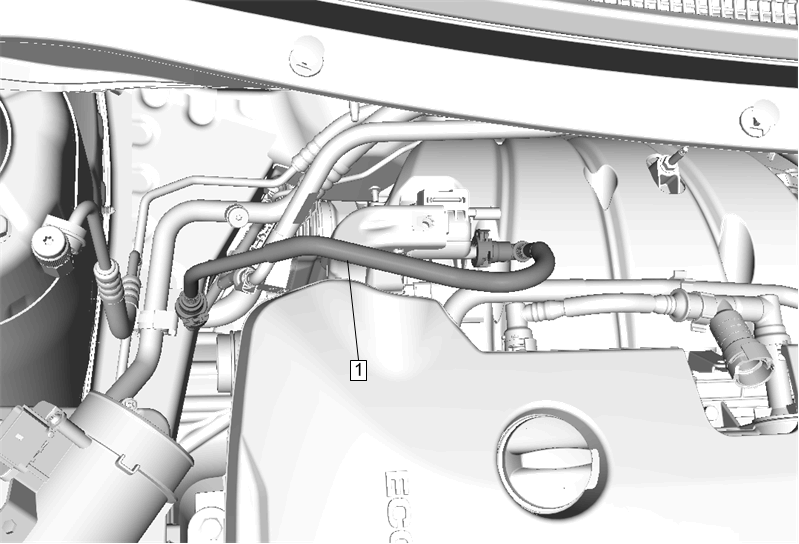

Fig 1: Evaporative Emission Canister Purge Solenoid Valve Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Air Cleaner Outlet Resonator. Refer to Air Cleaner Outlet Resonator Replacement (LCV)
1	Evaporative Emission Canister Purge Solenoid Valve Hose Procedure  Disconnect the quick disconnects. Refer to Plastic Collar Quick Connect Fitting Service
