Evaporative Emission Canister Purge Solenoid Valve Hose Replacement (LTG)

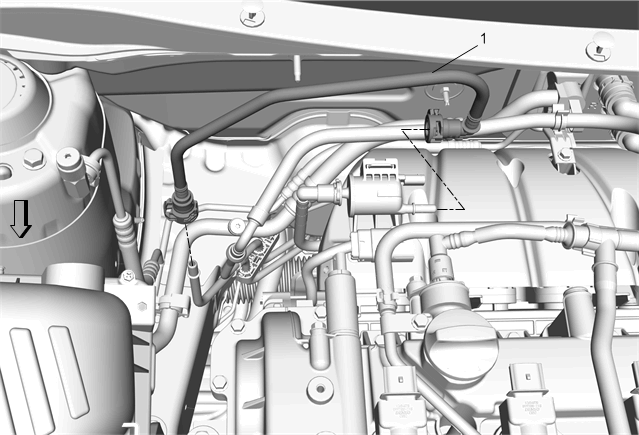

Fig 1: Evaporative Emission Canister Purge Solenoid Valve Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG) .
1	Evaporative Emission Canister Purge Solenoid Valve Hose Procedure  Disconnect the quick disconnects. Refer to Plastic Collar Quick Connect Fitting Service .
