Turbocharger Oil Feed Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

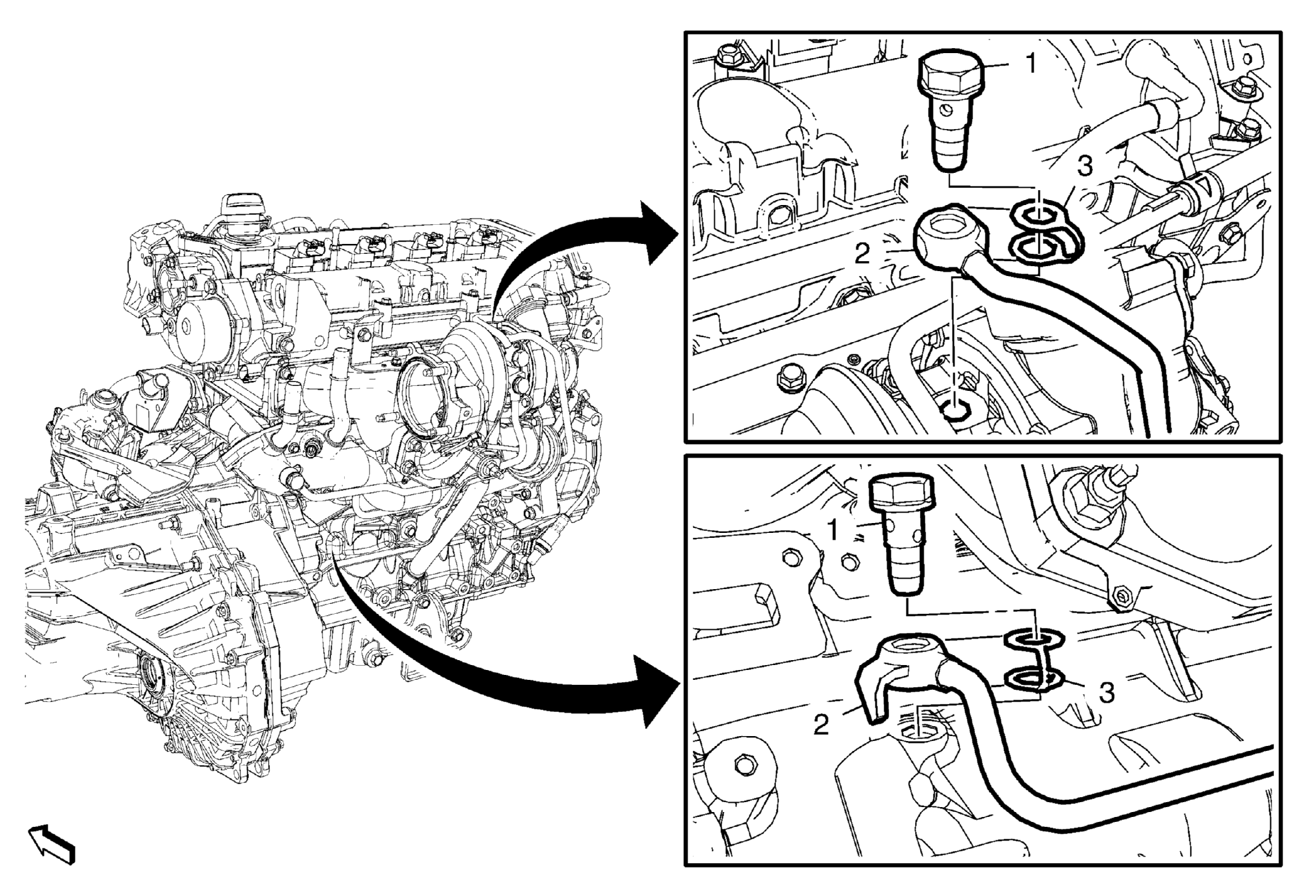

Fig 1: Turbocharger Oil Feed Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the catalytic converter. Refer to Catalytic Converter Replacement (2.0L LHU) . Remove the turbocharger brace. Refer to Turbocharger Brace Replacement . Remove the radiator outlet pipe. Refer to Radiator Outlet Pipe Replacement (2.0L LHU) .
1	Oil Feed Pipe Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft)
2	Oil Feed Pipe
3	Oil Feed Pipe Seal Ring (Qty: 2) Procedure Use a NEW seal ring.
