Radiator Outlet Pipe Replacement (2.0L LHU)

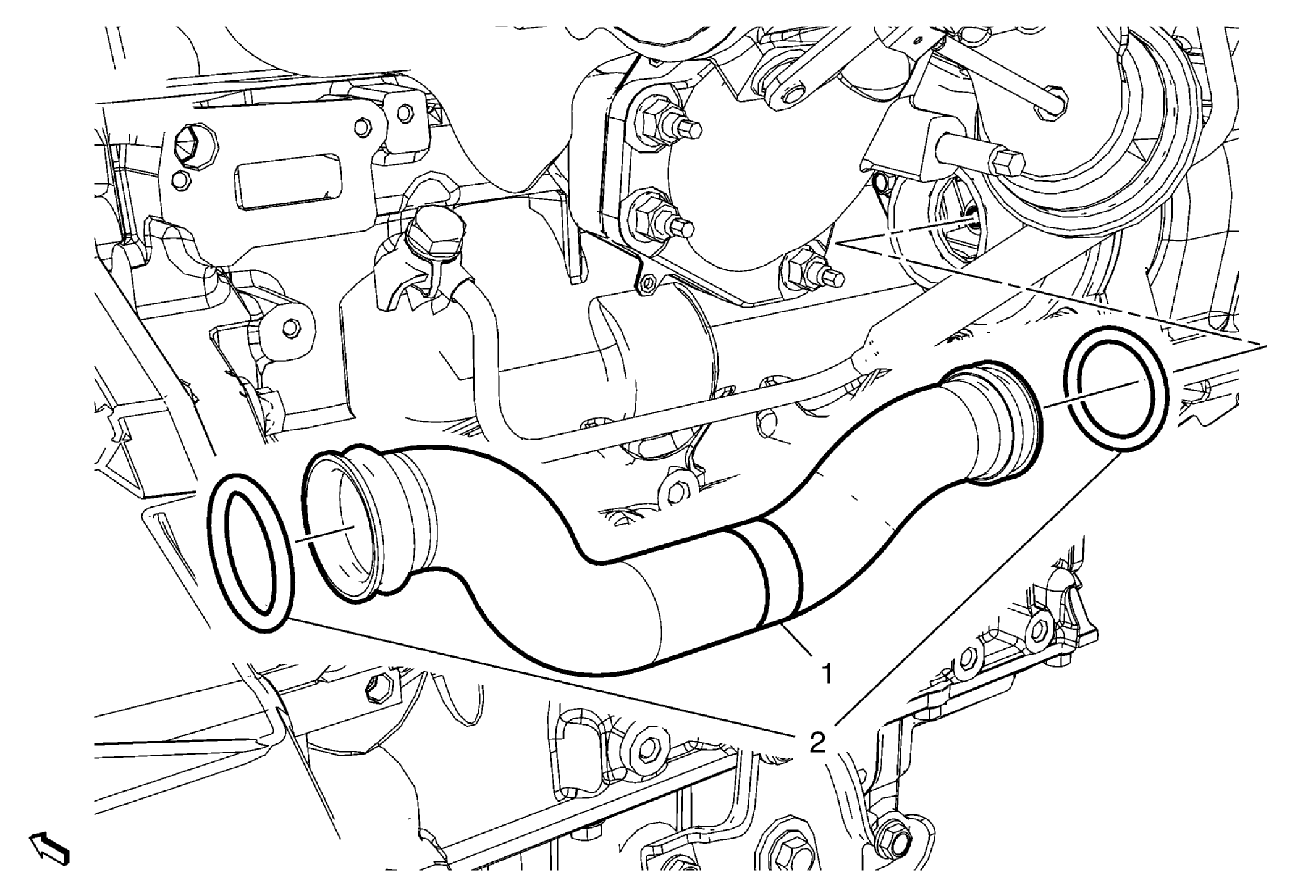

Fig 1: Radiator Outlet Pipe(2.0L LHU)
GM2743395Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the engine coolant thermostat housing. Refer to Engine Coolant Thermostat Housing Replacement (2.0L LHU) .
1 Radiator Outlet Pipe
2 Radiator Outlet Pipe Seal Ring (Qty: 2)
Procedure
Use NEW seal rings.
