Intake Manifold Brace Replacement

WARNING: This page is about a different variant/trim than selected.

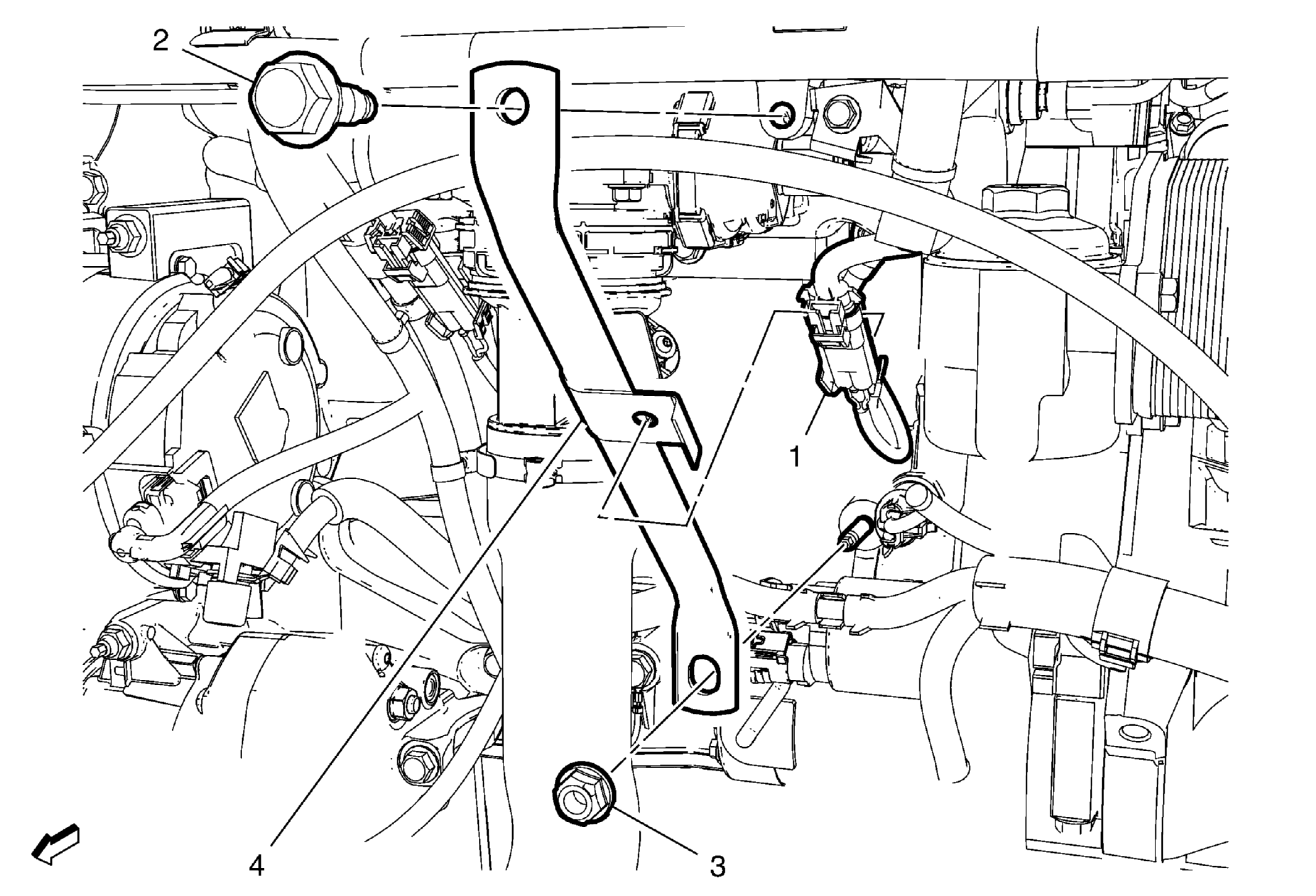

Fig 1: Intake Manifold Brace

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine sight shield. Refer to Engine Sight Shield Replacement . Remove the charge air bypass valve vacuum tank. Refer to Charge Air Bypass Valve Vacuum Tank Replacement .
1	Knock Sensor Wiring Harness Plug
2	Intake Manifold Brace Bolt CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
3	Intake Manifold Brace Nut Tighten 25 N.m (18 lb ft)
4	Intake Manifold Brace
