Charge Air Bypass Valve Vacuum Tank Replacement
WARNING: This page is about a different variant/trim than selected.

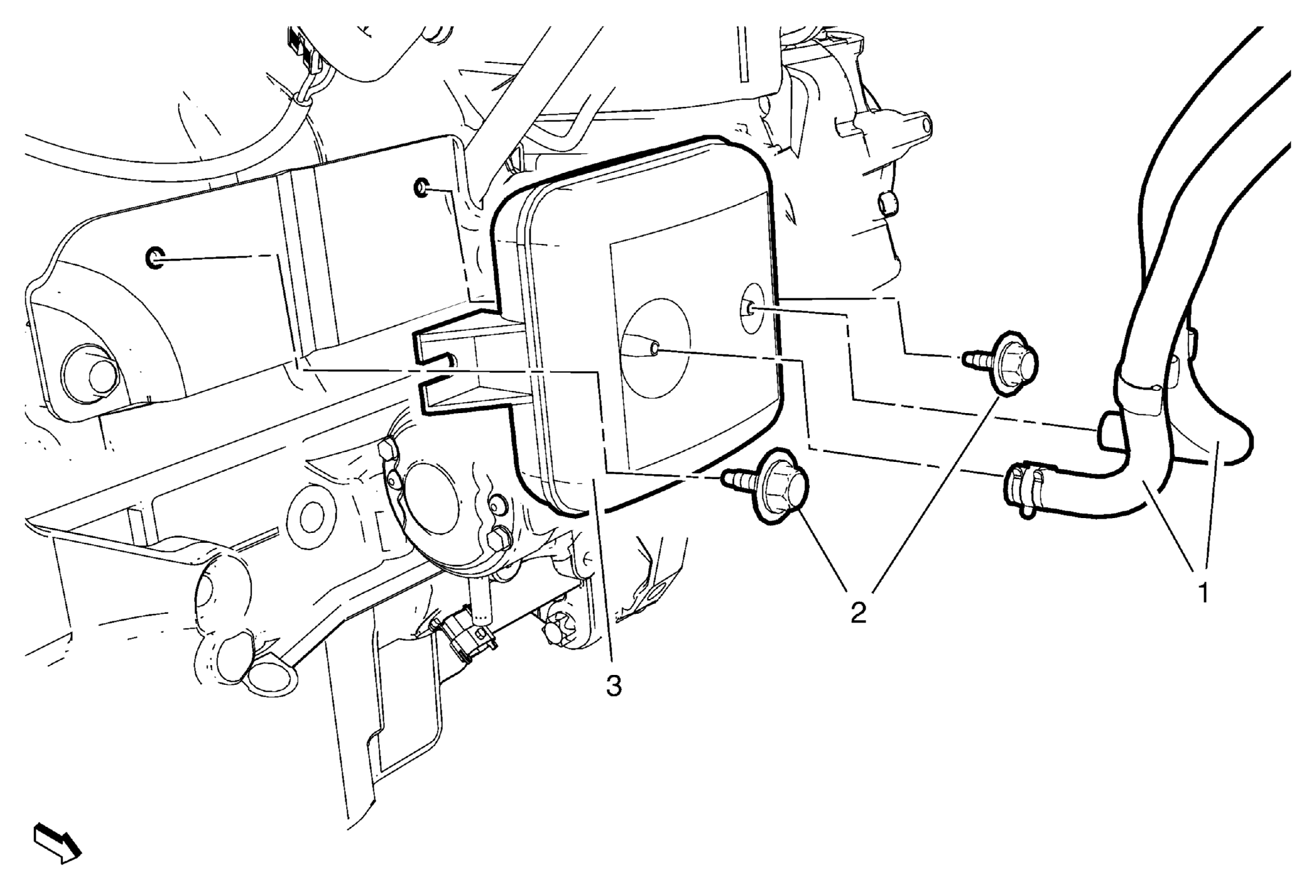

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Vacuum Hose (Qty: 2) Procedure Remove the vacuum hoses from the charger air bypass valve vacuum tank. |
| 2 | Charge Air Bypass Valve Vacuum Tank Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Charge Air Bypass Valve Vacuum Tank |
