Turbocharger Wastegate Regulator Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

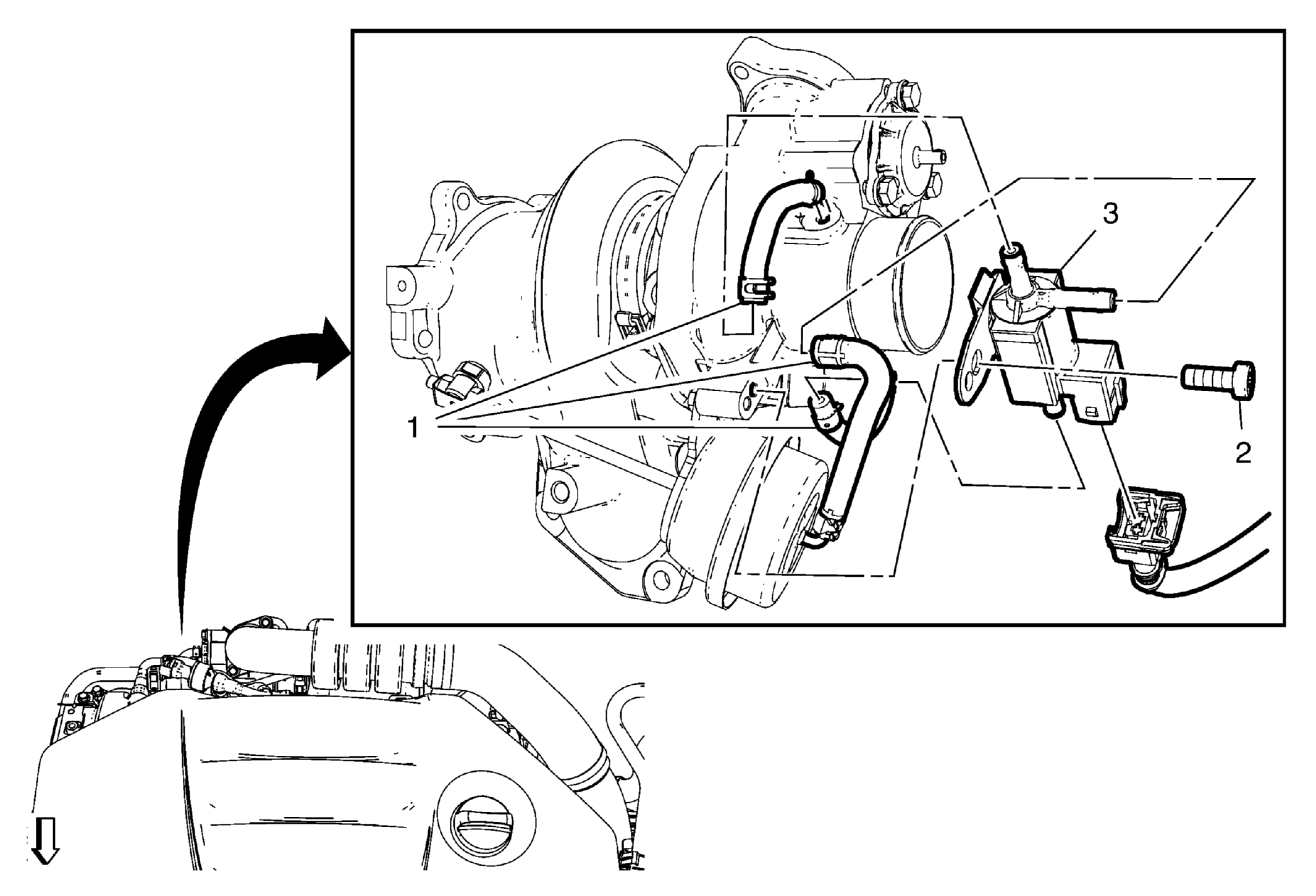

Fig 1: Turbocharger Wastegate Regulator Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . Remove the air cleaner outlet rear duct. Refer to Air Cleaner Outlet Rear Duct Replacement
1	Vacuum Hose (Qty: 3)
2	Wastegate Actuator Bolt CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 10 N.m (89 lb in)
3	Turbocharger Wastegate Actuator
