Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (MDK)

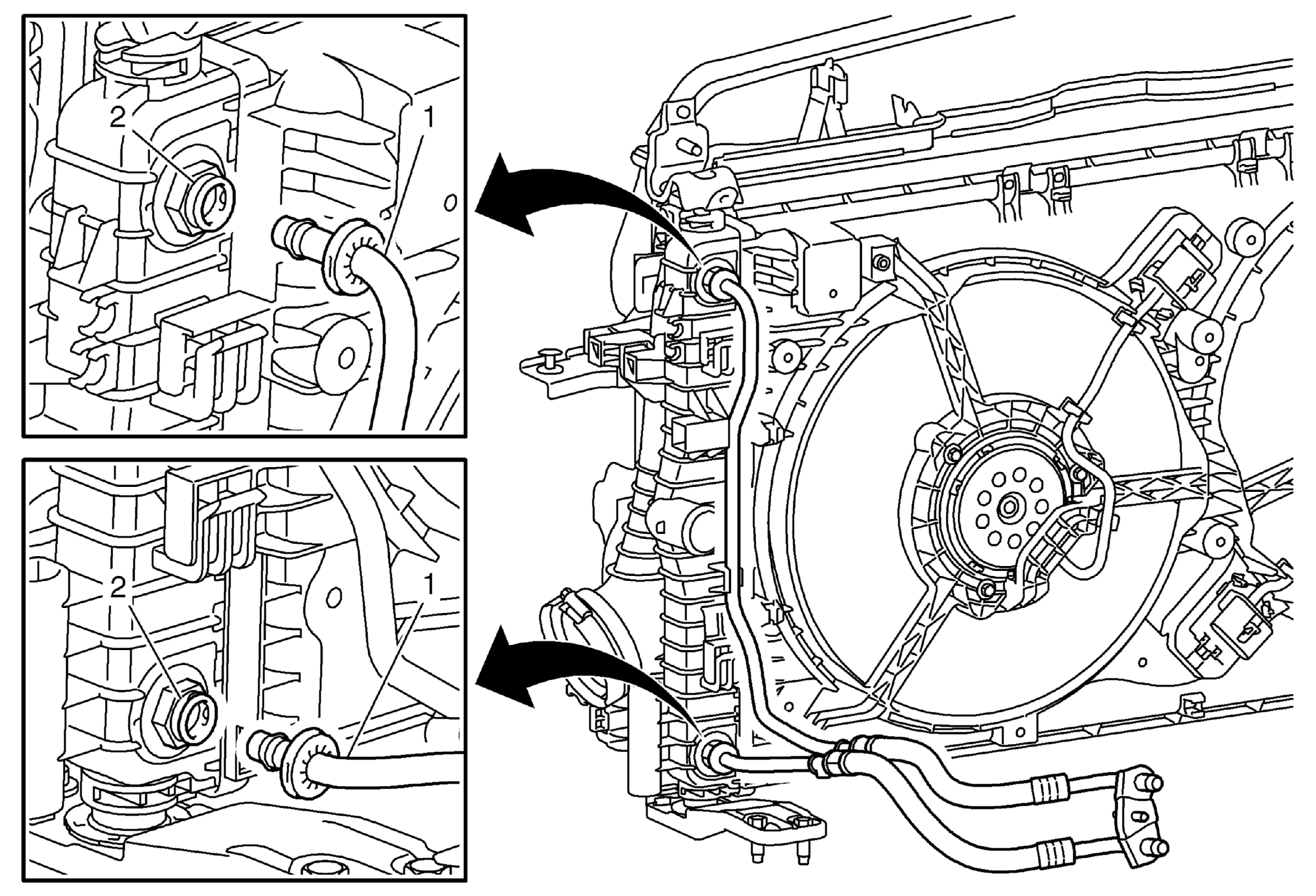

| Callout | Component Name |
|---|---|
| 1 | Transmission Fluid Cooler Hose Cover (Qty:2) |
| 2 | Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting (Qty:2) Procedure Mount the release tool round the pipe, press it in to the quick connector and turn for removal using DT-49662 disconnect tool. Special Tools DT-49662 Disconnect Tool 3/8". For equivalent regional tools, refer to Special Tools . |
