Front Seat Belt Anchor Plate Tensioner Replacement (2/4/6-Way Hybrid, 6-Way Hybrid Sport)

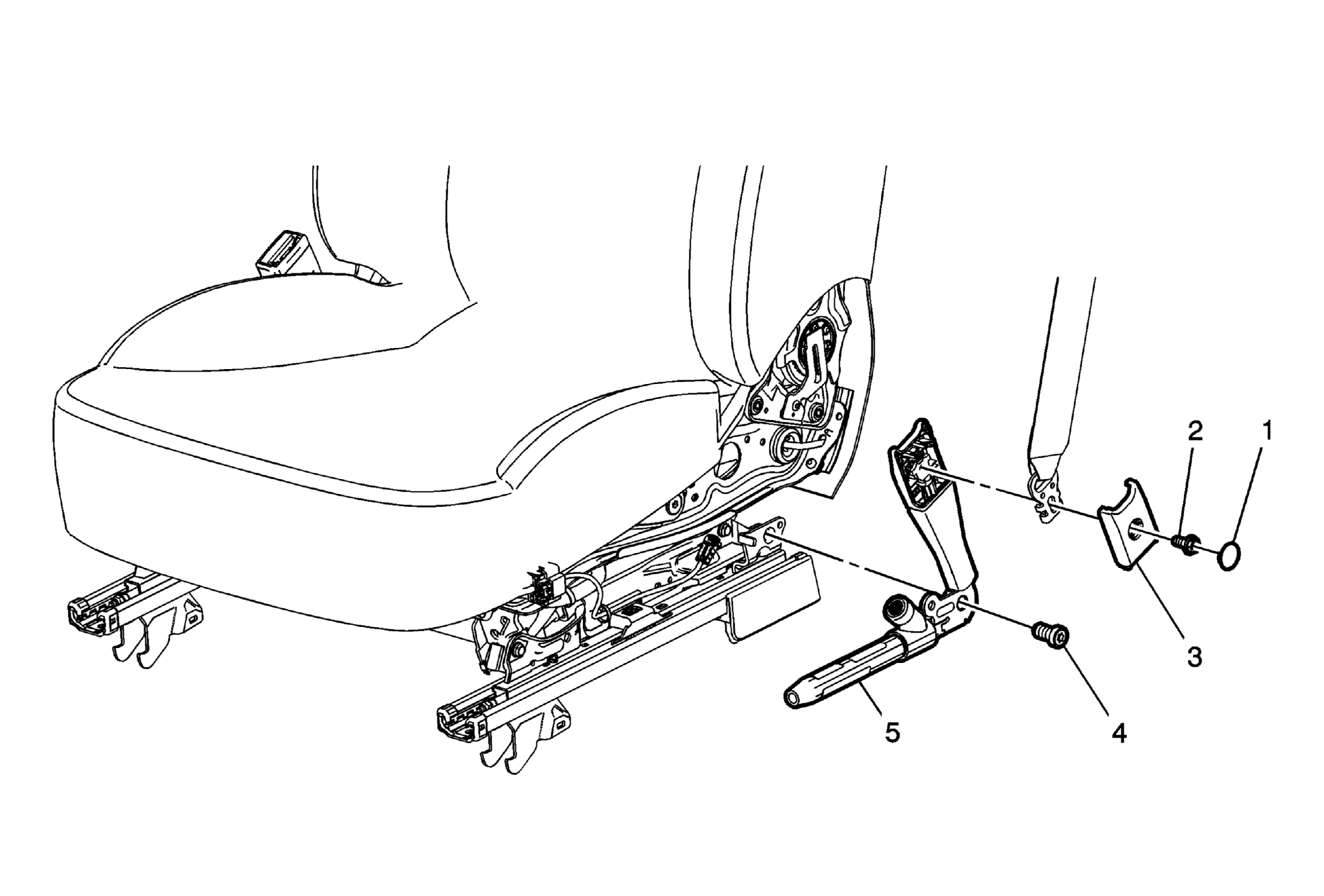

Fig 1: Front Seat Belt Anchor Plate Tensioner (2/4/6-Way Hybrid, 6-Way Hybrid Sport)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflatable restraint seat belt pretensioner as normal shop waste. Undeployed seat belt pretensioners contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed seat belt pretensioner. Failure to observe the following disposal methods may be a violation of federal, state, or local laws. Preliminary Procedures Move the front seat to the full forward and full up position. Disable the SIR. Refer to SIR Disabling and Enabling . Remove the front seat adjuster track finish cover. Refer to Front Seat Adjuster Track Finish Cover Replacement (2/4/6-Way Hybrid, 6-Way Hybrid Sport) . Remove the driver or passenger seat adjuster finish cover. Refer to Driver or Passenger Seat Adjuster Finish Cover Replacement . For pretensioner handling and scrapping, refer to Pretensioner Handling and Scrapping .
1	Driver or Passenger Seat Belt Tensioner Cover Bolt (Retractor Side) Cover
2	Driver or Passenger Seat Belt Tensioner Fastener CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
3	Driver or Passenger Seat Belt Tensioner Cover Assembly
4	Driver or Passenger Seat Belt Tensioner Assembly Fastener Tighten 45 N.m (33 lb ft)
5	Driver or Passenger Seat Belt Tensioner Assembly Procedure Disconnect the electrical connector. Refer to Pretensioner Handling and Scrapping .
