Driver or Passenger Seat Adjuster Finish Cover Replacement (8-Way-Power)

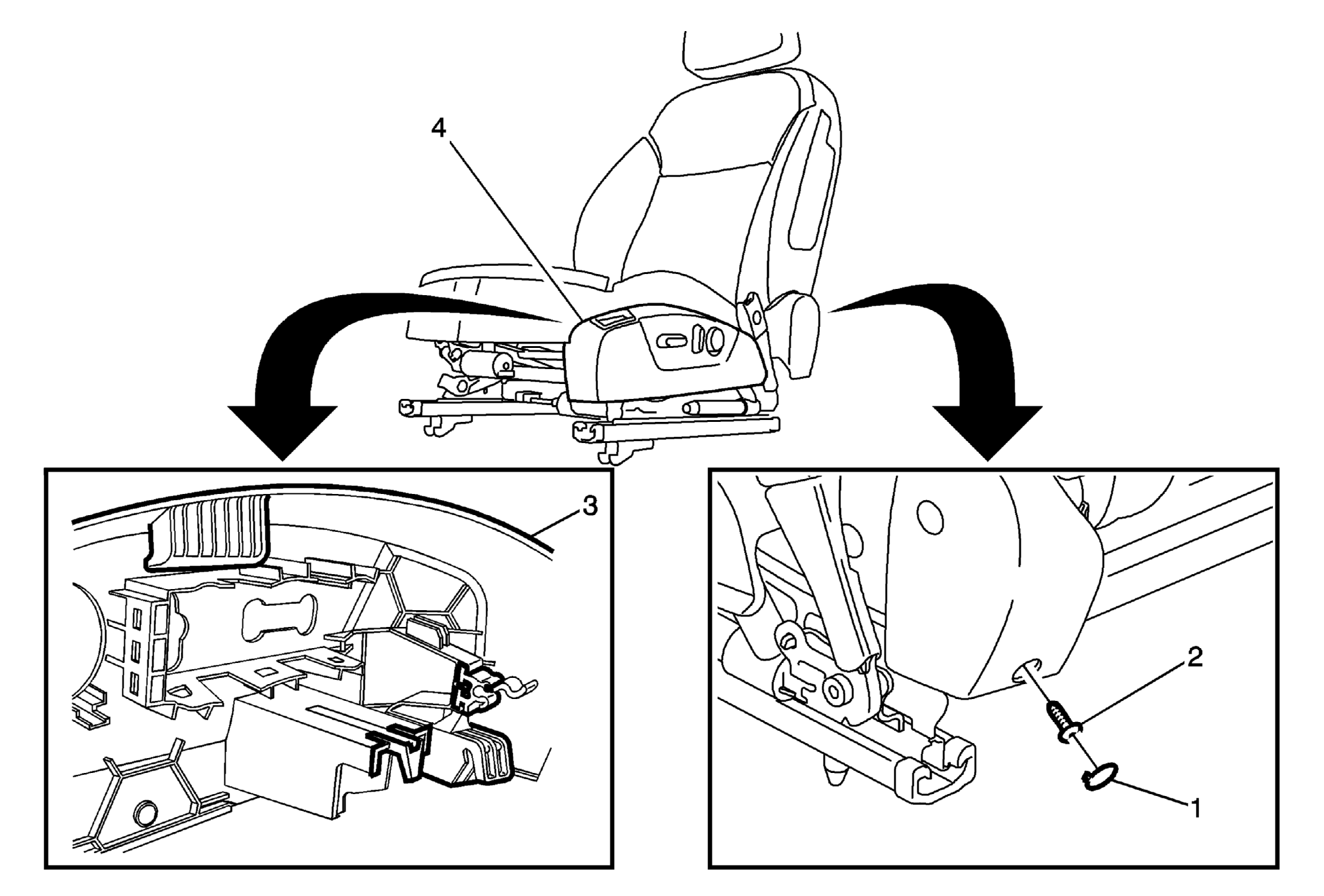

Fig 1: Driver or Passenger Seat Adjuster Finish Cover (8-Way-Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the front door. Release the driver seat retractor side belt. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation (Oshawa 2/4/6-Way Hybrid, 6-Way Sport) . Remove the front seat adjuster and recliner knob. Use a small flat-bladed tool to unclip the adjuster and recliner knob.
1	Front Seat Adjuster Finish Cover Retainer
2	Front Seat Adjuster Finish Cover Fastener
3	Front Seat Adjuster Finish Cover Retainer Procedure Disengage front retainer. Pull up on the front of cover to disengage the front hook. Carefully pull up on the center of the cover to disengage the center hook.
4	Front Seat Adjuster Finish Cover Procedure Disconnect the electrical connector. Disengage and remove the remainder of the finish cover by pulling the cover upward and outboard away from the seat. NOTE: When reinstalling the finish cover, re-snap the front retainer together around the finish cover retainer rod.
