Front Seat Adjuster Track Finish Cover Replacement

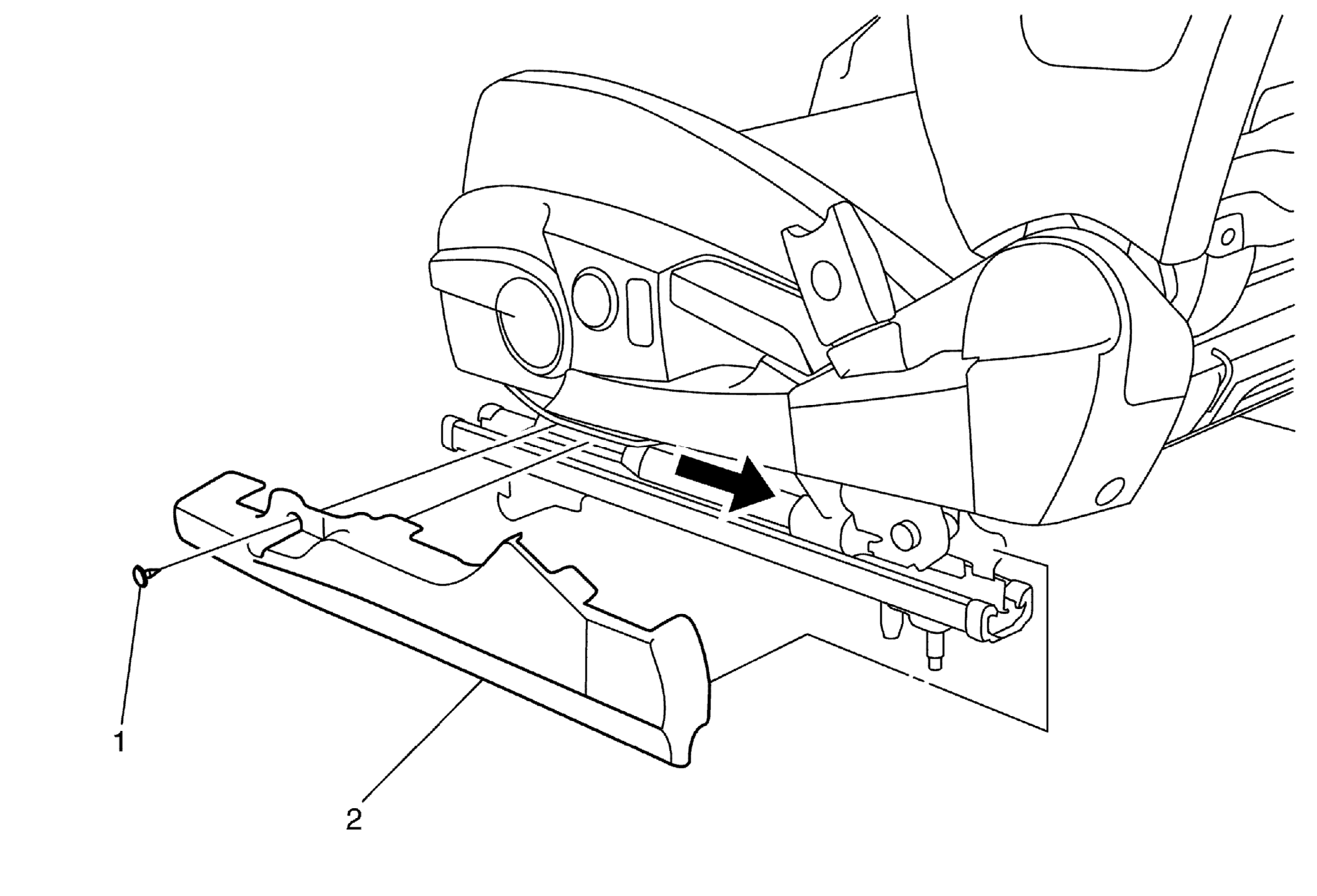

Fig 1: Front Seat Adjuster Track Finish Cover & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Adjuster Track Finish Cover Fastener CAUTION: Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in)
2	Front Seat Adjuster Track Finish Cover Procedure Move front seat height adjuster into the middle position. Move the driver or passenger seat fully forward. Clip out the front seat adjuster track finish cover at rear. Move the front seat adjuster track finish cover at front. Remove the front seat adjuster track finish cover.

Callout

Component Name

Front Seat Adjuster Track Finish Cover Fastener

CAUTION:

Tighten
3.5 N.m (31 lb in)

Front Seat Adjuster Track Finish Cover

Procedure
