Radio Cooling Duct Replacement

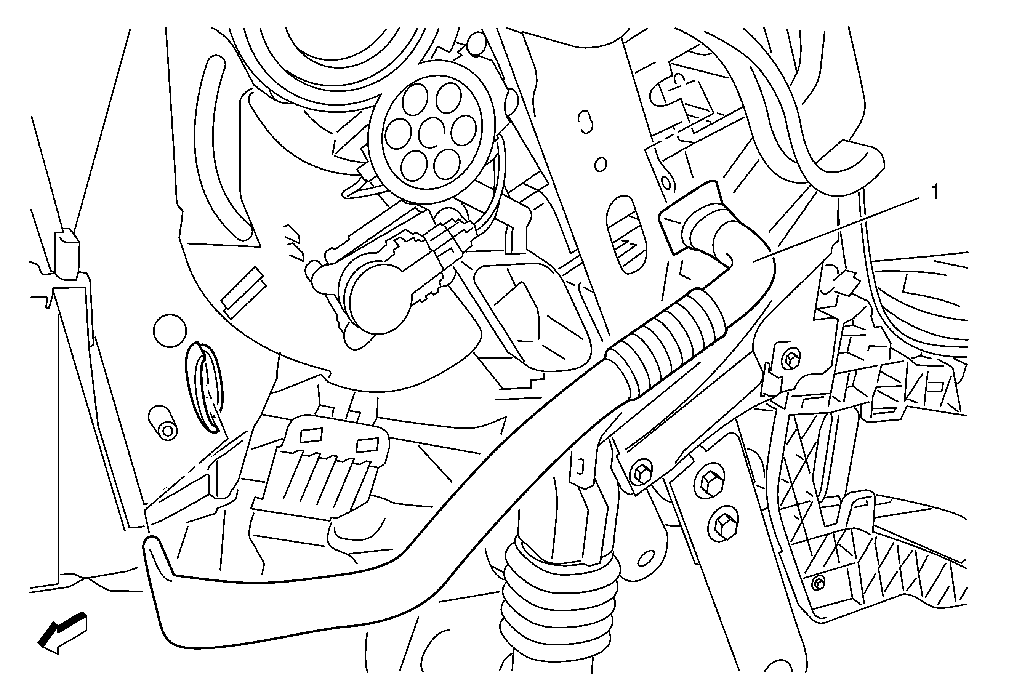

Fig 1: Radio Cooling Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower trim panel left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side . Remove the floor air outlet duct left side. Refer to Floor Air Outlet Duct Replacement - Left Side .
1	Radio Cooling Duct Procedure Pull off the radio cooling duct from the HVAC module and release the duct from the I/P center reinforcement.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel lower trim panel left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
Remove the floor air outlet duct left side. Refer to Floor Air Outlet Duct Replacement - Left Side .

Radio Cooling Duct
Procedure
Pull off the radio cooling duct from the HVAC module and release the duct from the I/P center reinforcement.
