Air Distributor Case Replacement

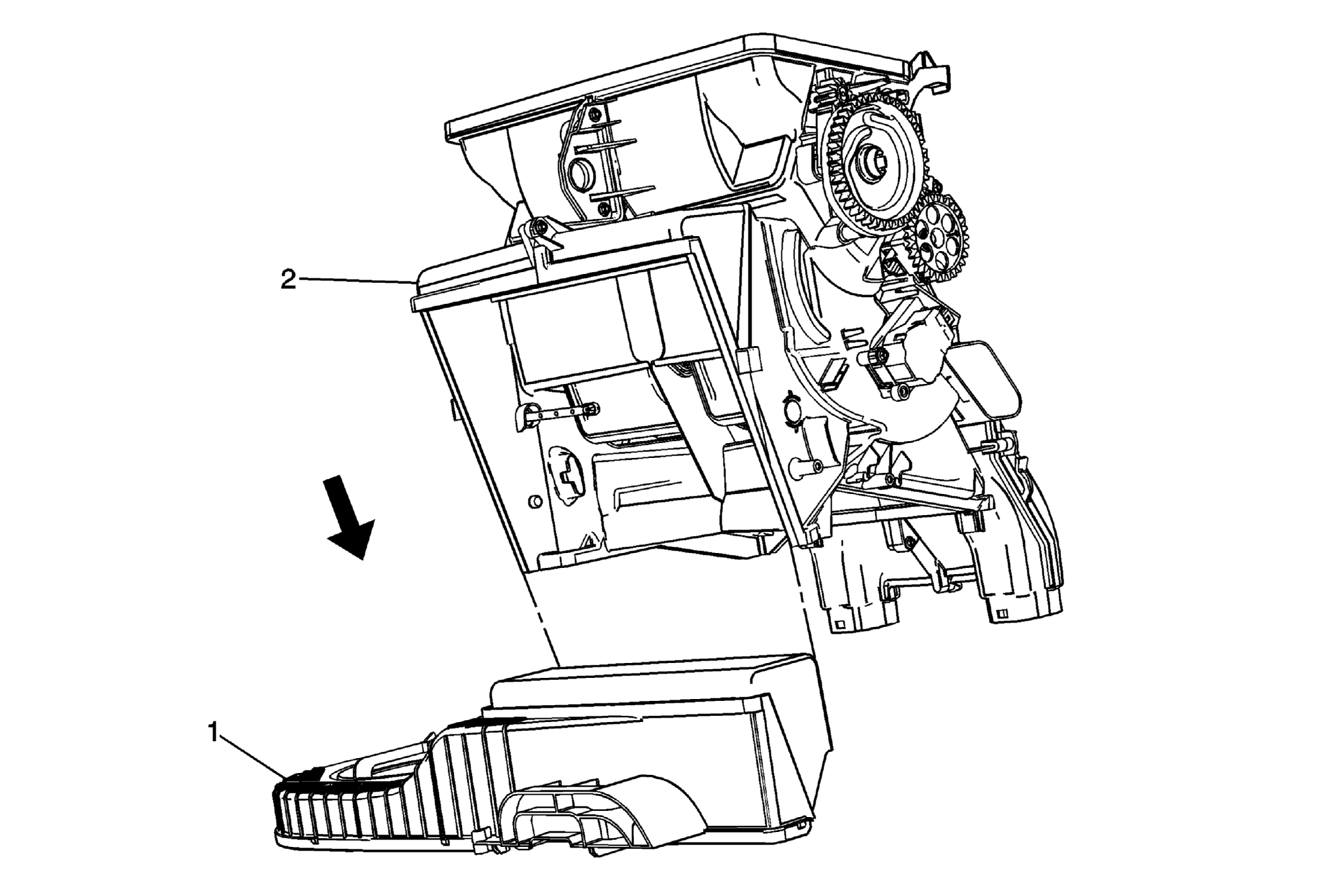

Fig 1: Air Distributor Case
GM3462792Courtesy of GENERAL MOTORS COMPANY
Call out Component Name
1 Heater and Air Conditioning Evaporator and Blower Upper Case
Refer to Heater and Air Conditioning Evaporator and Blower Upper Case Replacement .
2 Air Distributor Case

Procedure

  1. Remove the right side temperature actuator. Refer to Temperature Valve Actuator Replacement - Right Side .
  2. Remove the left side temperature actuator. Refer to Temperature Valve Actuator Replacement - Left Side (Left Hand Drive) .
  3. Remove the mode control cam actuator. Refer to Mode Control Cam Actuator Replacement .
  4. Transfer the components as necessary.
