Air Conditioning Compressor and Condenser Hose Replacement (LUK)

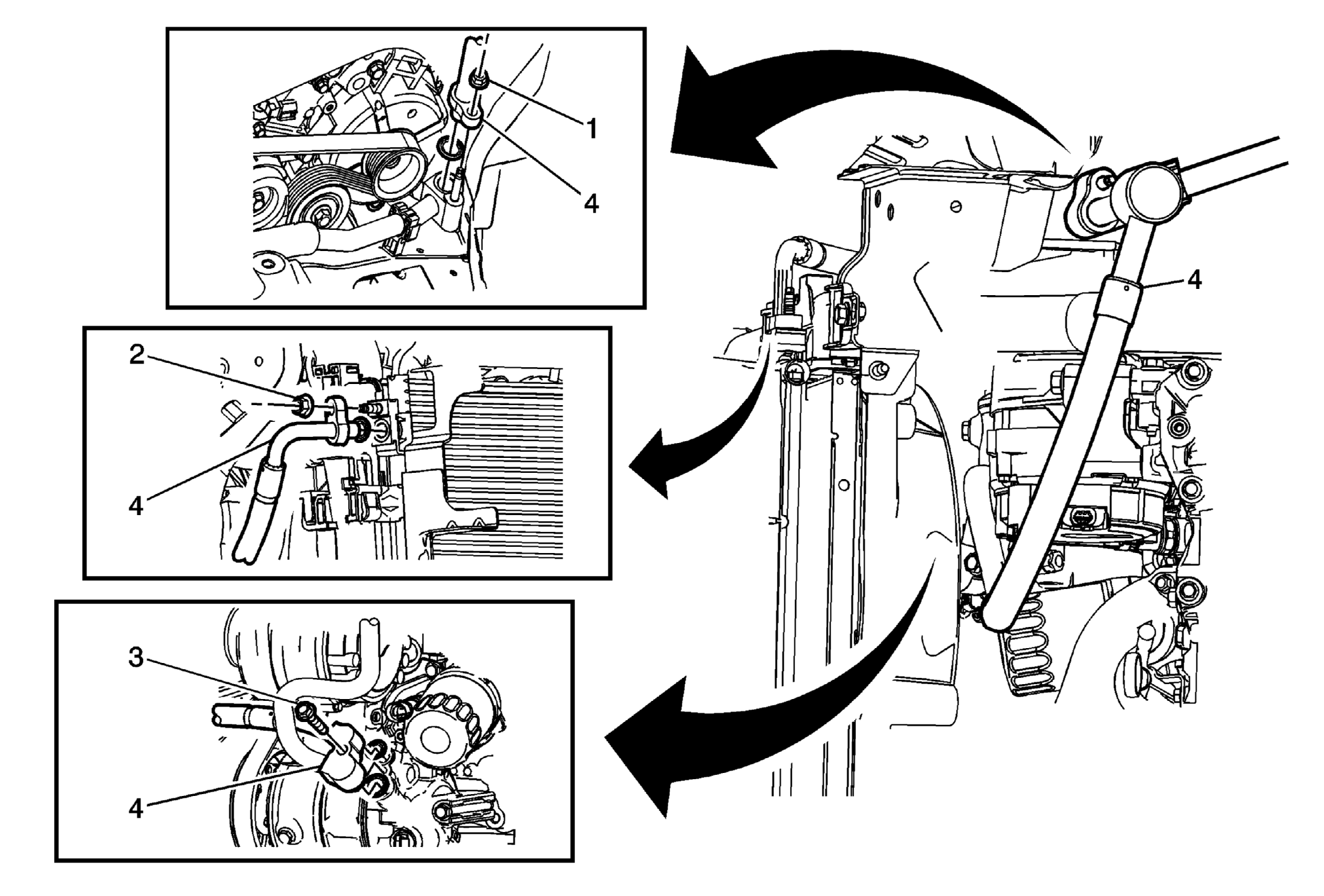

Fig 1: Air Conditioning Compressor & Condenser Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) . Remove the air cleaner outlet duct assembly, if non-turbo equipped. Refer to Air Cleaner Outlet Duct Replacement . Recover the refrigerant. Refer to Refrigerant Recovery and Recharging . Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement .
1	A/C Compressor and Condenser Hose Nut CAUTION: Refer to Fastener Caution . Procedure Remove and discard sealing washer. Refer to Air Conditioning System Seal Replacement . Tighten 20 N.m (15 lb ft)
2	A/C Compressor and Condenser Hose Nut Procedure Remove and discard sealing washer. Refer to Air Conditioning System Seal Replacement . Tighten 20 N.m (15 lb ft)
3	A/C Compressor and Condenser Hose Bolt Procedure Remove and discard sealing washer. Refer to Air Conditioning System Seal Replacement . Tighten 20 N.m (15 lb ft)
4	A/C Compressor and Condenser Hose
