Installation Procedure

  1. Install air conditioning compressor hose assembly into the vehicle.

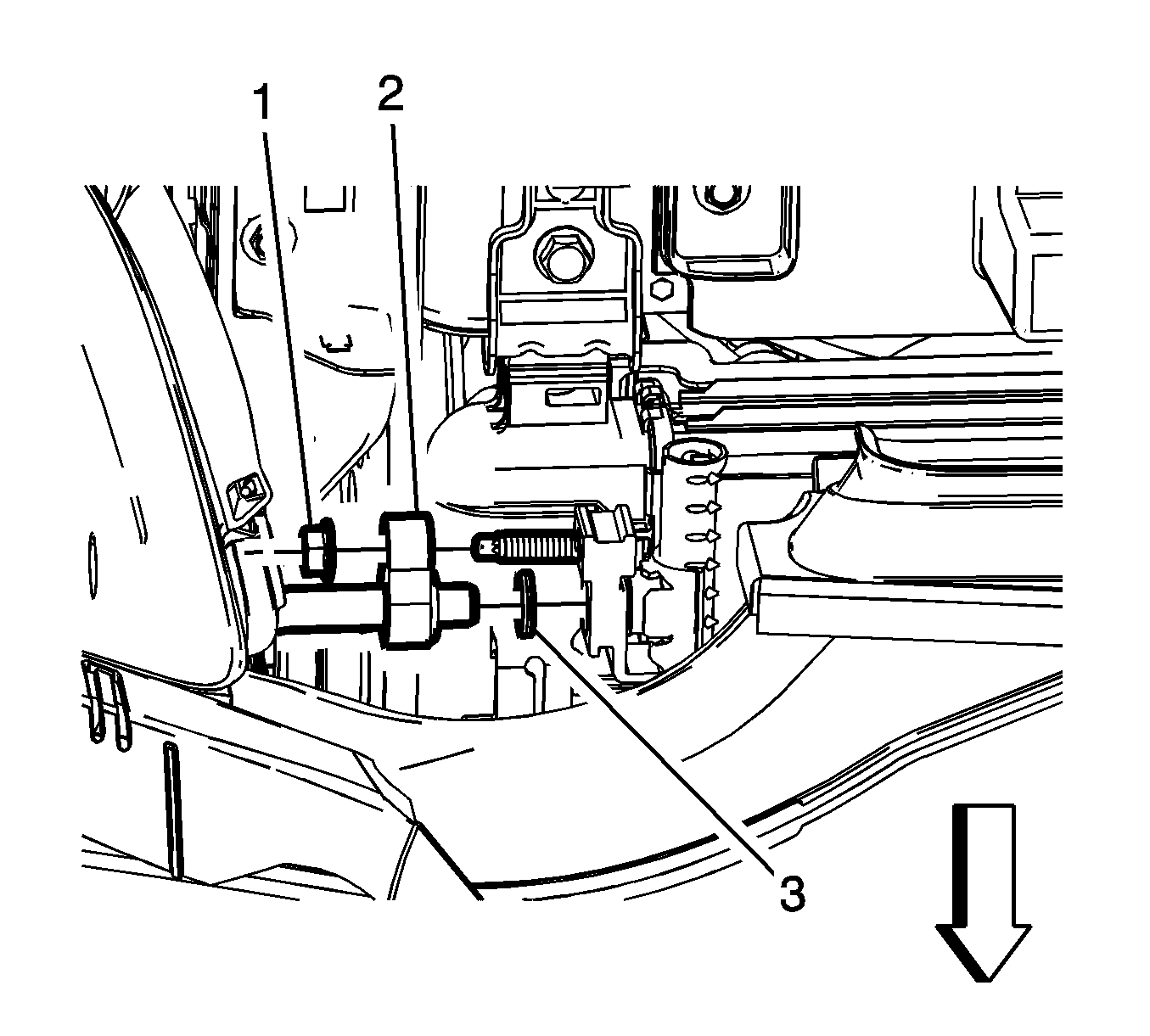

    2. Fig 1: Air Conditioning Compressor Hose Assembly Nut
    GM2827366Courtesy of GENERAL MOTORS COMPANY
  2. Install NEW air conditioning sealing washer (3) to the air conditioning compressor hose assembly (2).
  3. Install the air conditioning compressor hose assembly (2) to the air conditioning condenser assembly.
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the air conditioning compressor hose assembly nut (1) and tighten the nut to 22 N.m (16 lb ft).

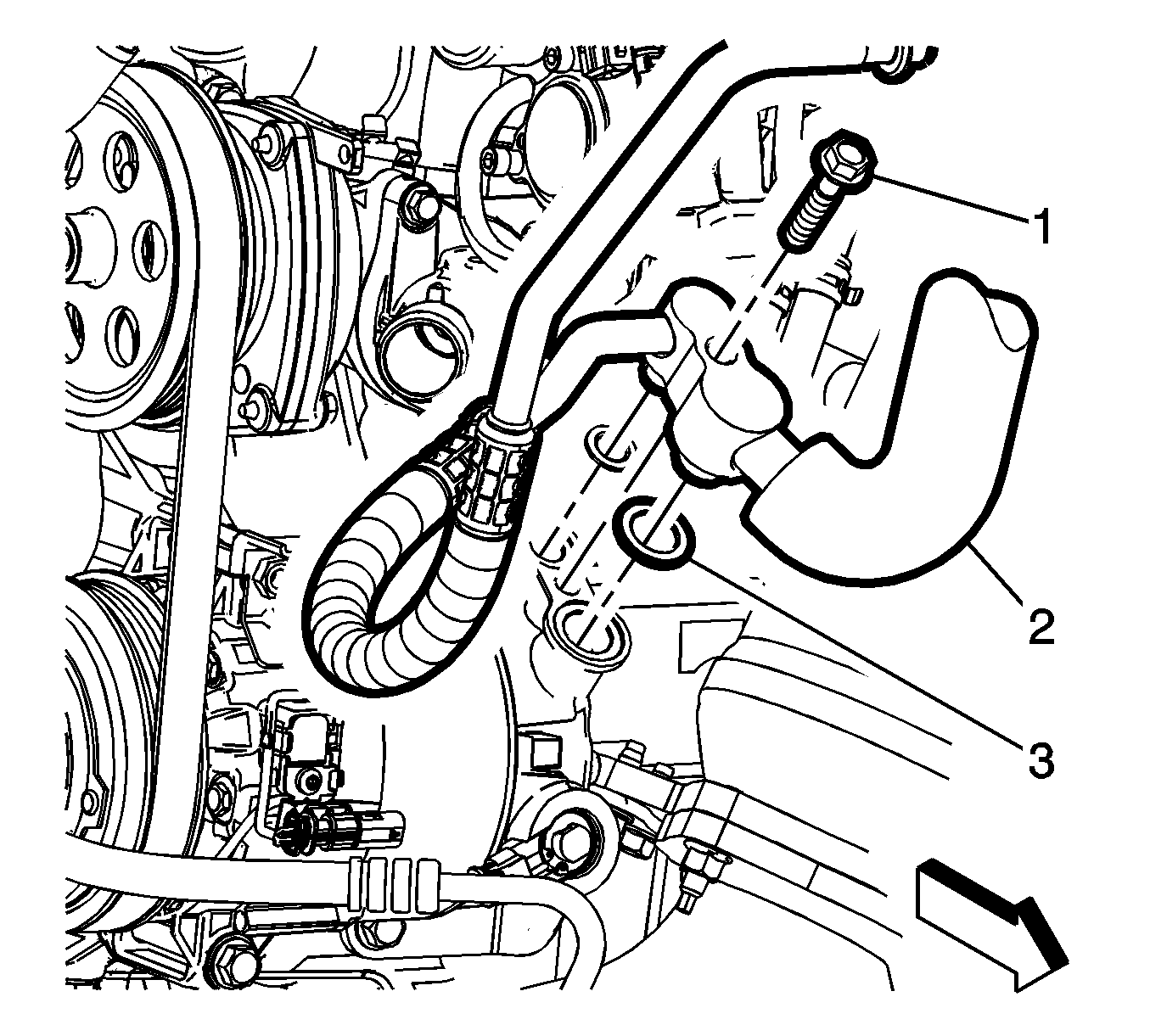

    5. Fig 2: Air Conditioning Compressor Hose Assembly Bolt
    GM2871142Courtesy of GENERAL MOTORS COMPANY
  5. Install NEW air conditioning sealing washers (3) to the air conditioning compressor hose assembly.
  6. Install the air conditioning compressor hose assembly (2) to the air conditioning compressor assembly.
  7. Install the air conditioning compressor hose assembly bolt (1) and tighten the bolt to 22 N.m (16 lb ft).

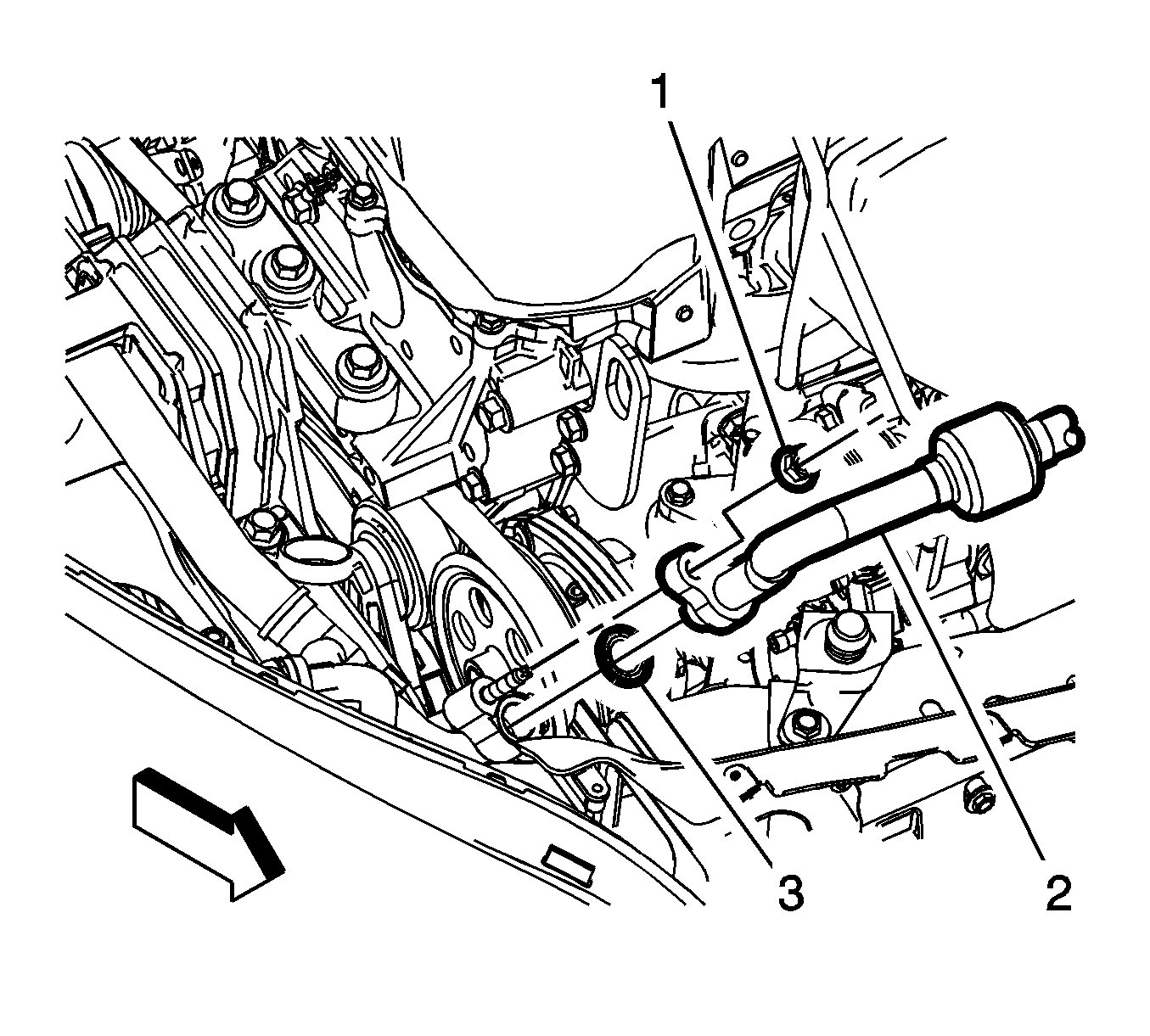

    8. Fig 3: Air Conditioning Compressor Hose Assembly
    GM2870783Courtesy of GENERAL MOTORS COMPANY
  8. Install NEW air conditioning sealing washer (3) to the air conditioning compressor hose assembly (2).
  9. Install the air conditioning compressor hose assembly (2) to the evaporator hose assembly.
  10. Install the air compressor hose assembly nut (1) and tighten the nut to 22 N.m (16 lb ft).
  11. Install the charge air cooler inlet air tube. Refer to Charge Air Cooler Inlet Air Tube Replacement (LTG)
  12. Install the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement .
  13. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LTG) .
  14. Evacuate and recharge the refrigerant system. Refer to Refrigerant Recovery and Recharging .
