Air Cleaner Outlet Duct Replacement

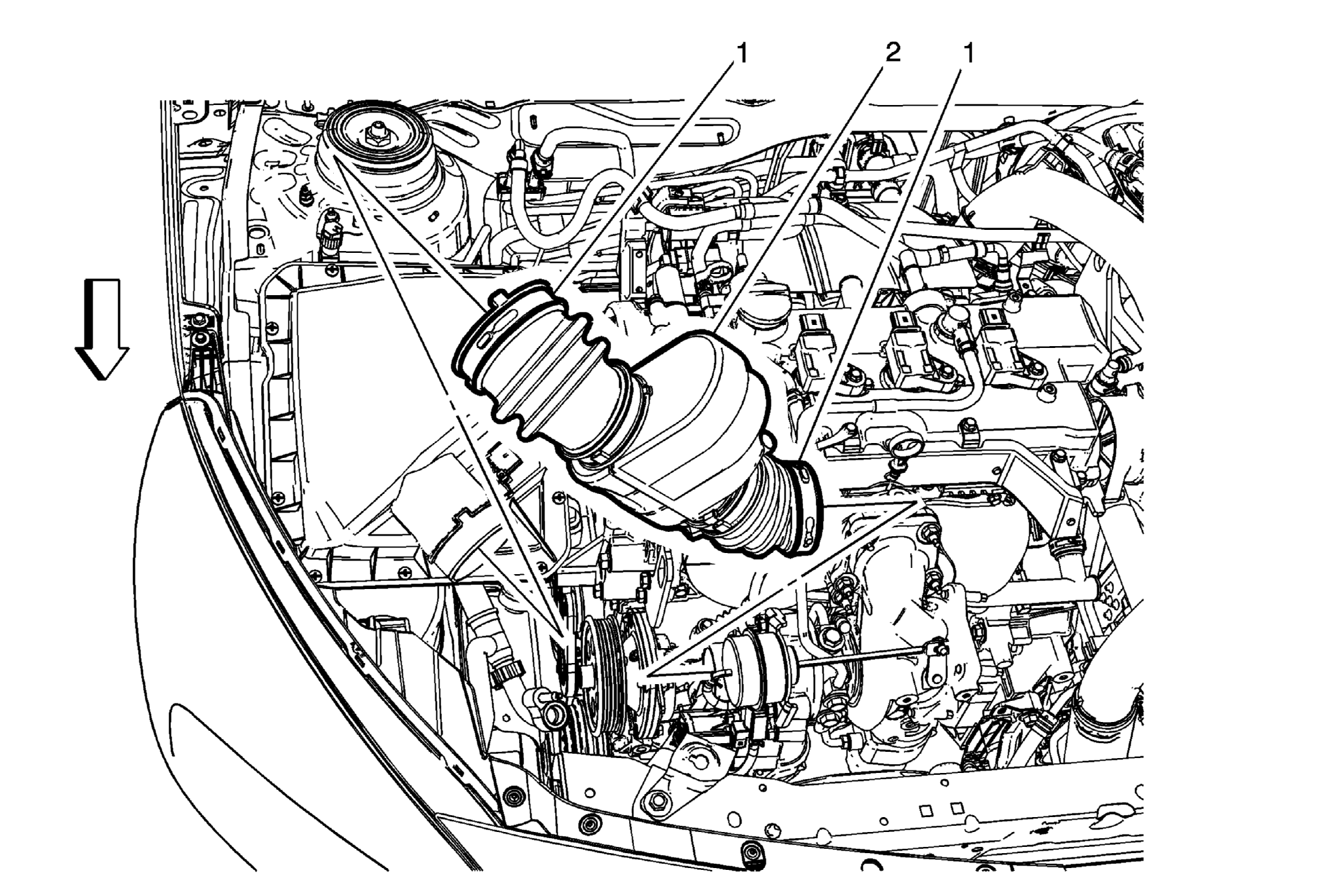

Fig 1: Air Cleaner Outlet Duct (LTG)
GM2868554Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Outlet Duct Clamps (Qty2)
CAUTION:

Refer to Fastener Caution .
2 Air Cleaner Outlet Duct
Procedure
Disconnect the PVC tube from the air cleaner outlet duct.
