Air Conditioning Compressor Bracket Replacement

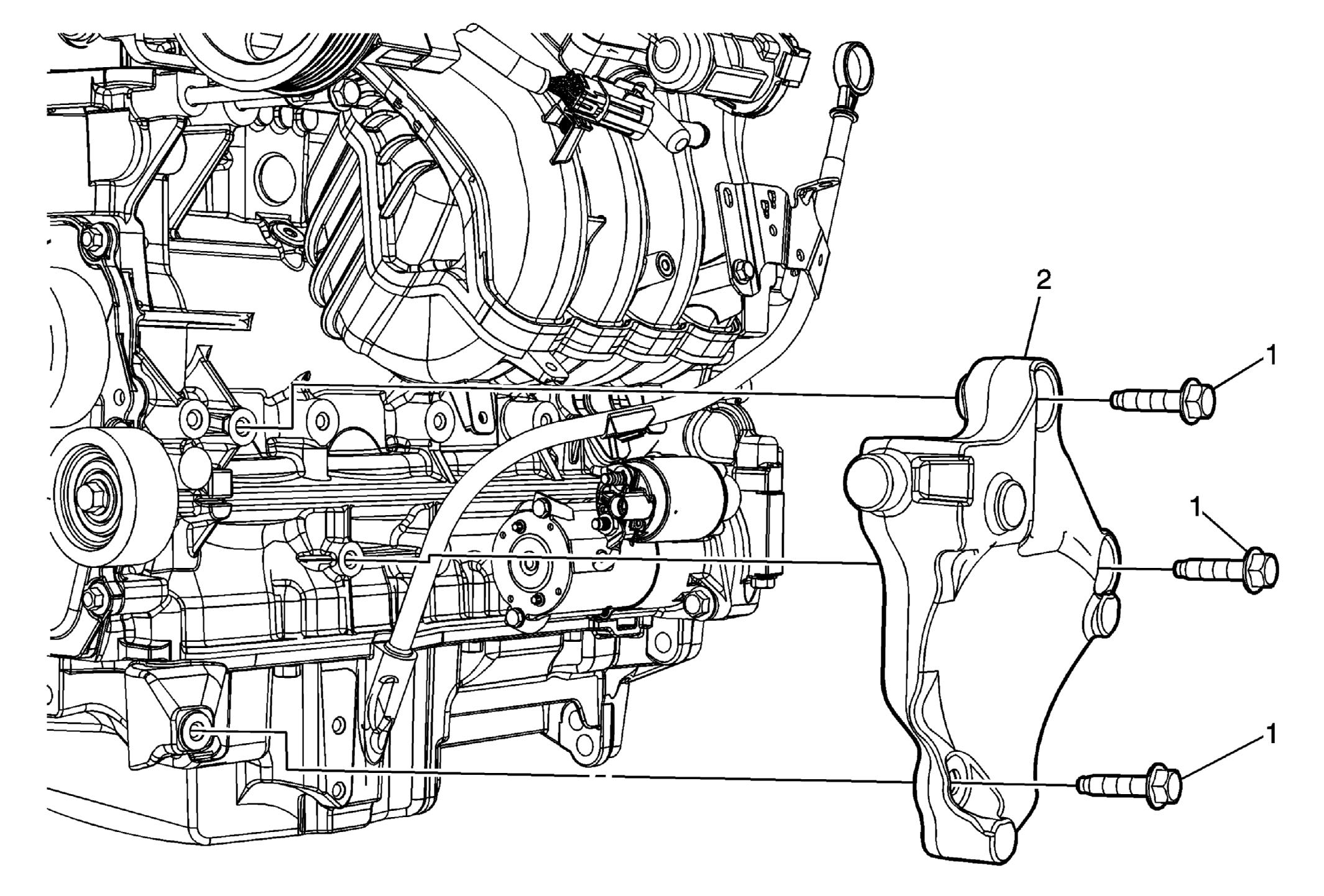

Fig 1: Air Conditioning Compressor Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the compressor. Refer to Air Conditioning Compressor Replacement (LUK) , Air Conditioning Compressor Replacement (LEA) or Air Conditioning Compressor Replacement (LTG) Remove the drive belt idler pulley.
1	A/C Compressor Bracket Bolts (Qty3). CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	A/C Compressor Bracket

Callout

Component Name

Preliminary Procedures

A/C Compressor Bracket Bolts (Qty3).

CAUTION:

Tighten
22 N.m (16 lb ft)

A/C Compressor Bracket
