Mode Valve Lever Replacement

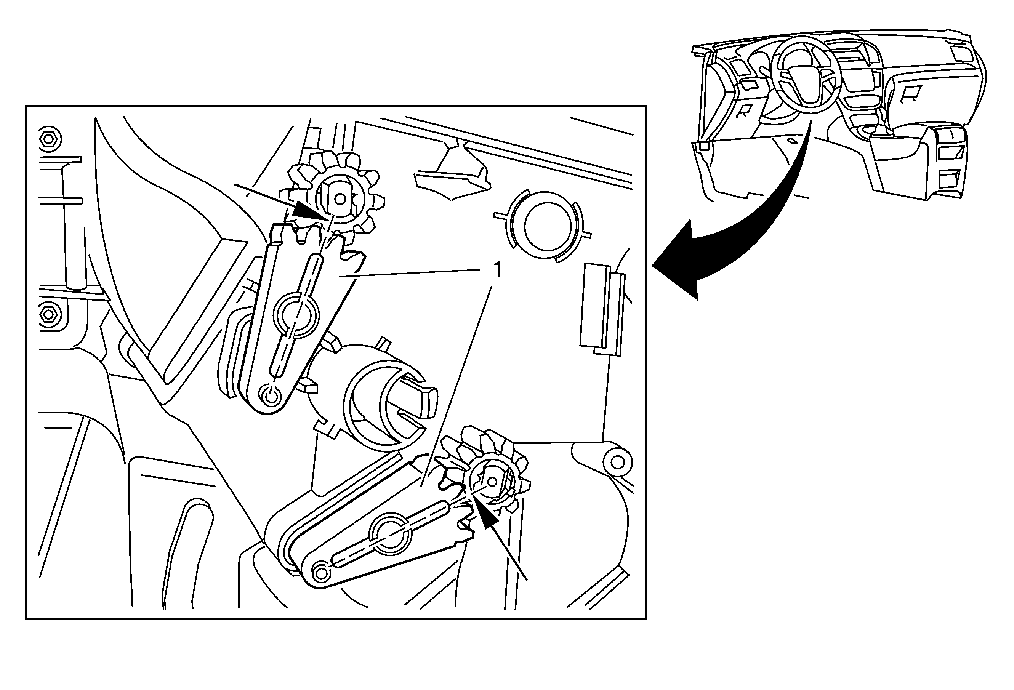

Fig 1: Mode Valve Lever

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the mode control cam actuator. Refer to Mode Control Cam Actuator Replacement . Remove the instrument cluster. Refer to Instrument Cluster Replacement . Remove the mode control cam. Refer to Mode Control Cam Replacement .
1	Mode Valve Lever Procedure Move the valve to the middle position and mark the position of the mode valve lever notch to the mode valve gear. TIP: Use the indentation for the correct positioning of the lever arms.

Callout

Component Name

Preliminary Procedures

Remove the mode control cam actuator. Refer to Mode Control Cam Actuator Replacement .
Remove the instrument cluster. Refer to Instrument Cluster Replacement .
Remove the mode control cam. Refer to Mode Control Cam Replacement .

Mode Valve Lever
Procedure
Move the valve to the middle position and mark the position of the mode valve lever notch to the mode valve gear.
TIP: Use the indentation for the correct positioning of the lever arms.
