Duct Air Temperature Sensor Replacement - Upper Left Side (Left Hand Drive)

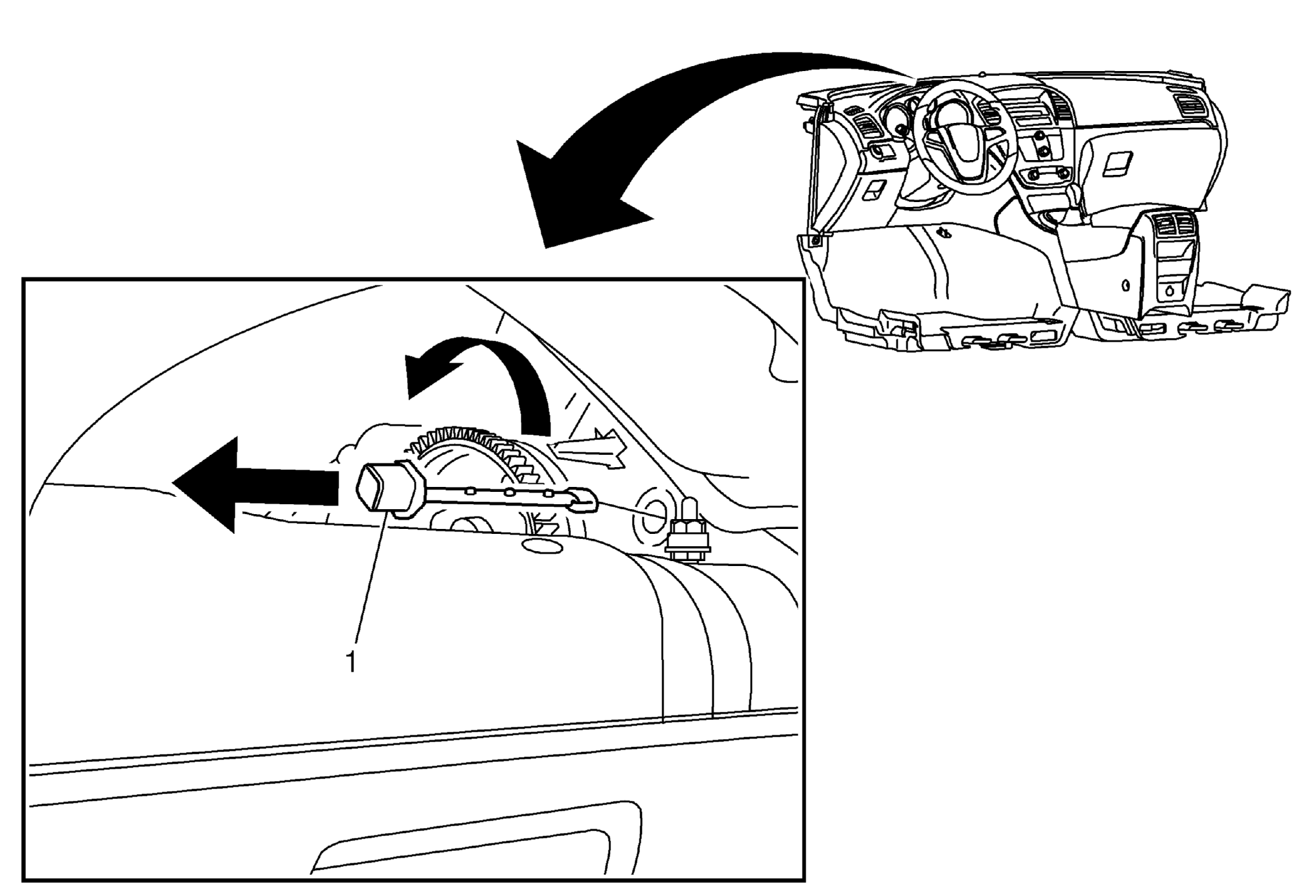

Fig 1: Duct Air Temperature Sensor - Upper Left Side (Left Hand Drive)
GM2020227Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel lower trim panel driver side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
  2. Remove the floor air outlet duct left side. Refer to Floor Air Outlet Duct Replacement - Left Side .
  3. Remove the instrument cluster. Refer to Instrument Cluster Replacement .
1 Duct Air Temperature Sensor Upper Left Side

Procedure

  1. Disconnect the air temperature sensor electrical connector.
  2. Twist and pull the upper air temperature sensor from the HVAC module assembly.
