Duct Air Temperature Sensor Replacement - Lower Right Side (Left Hand Drive)

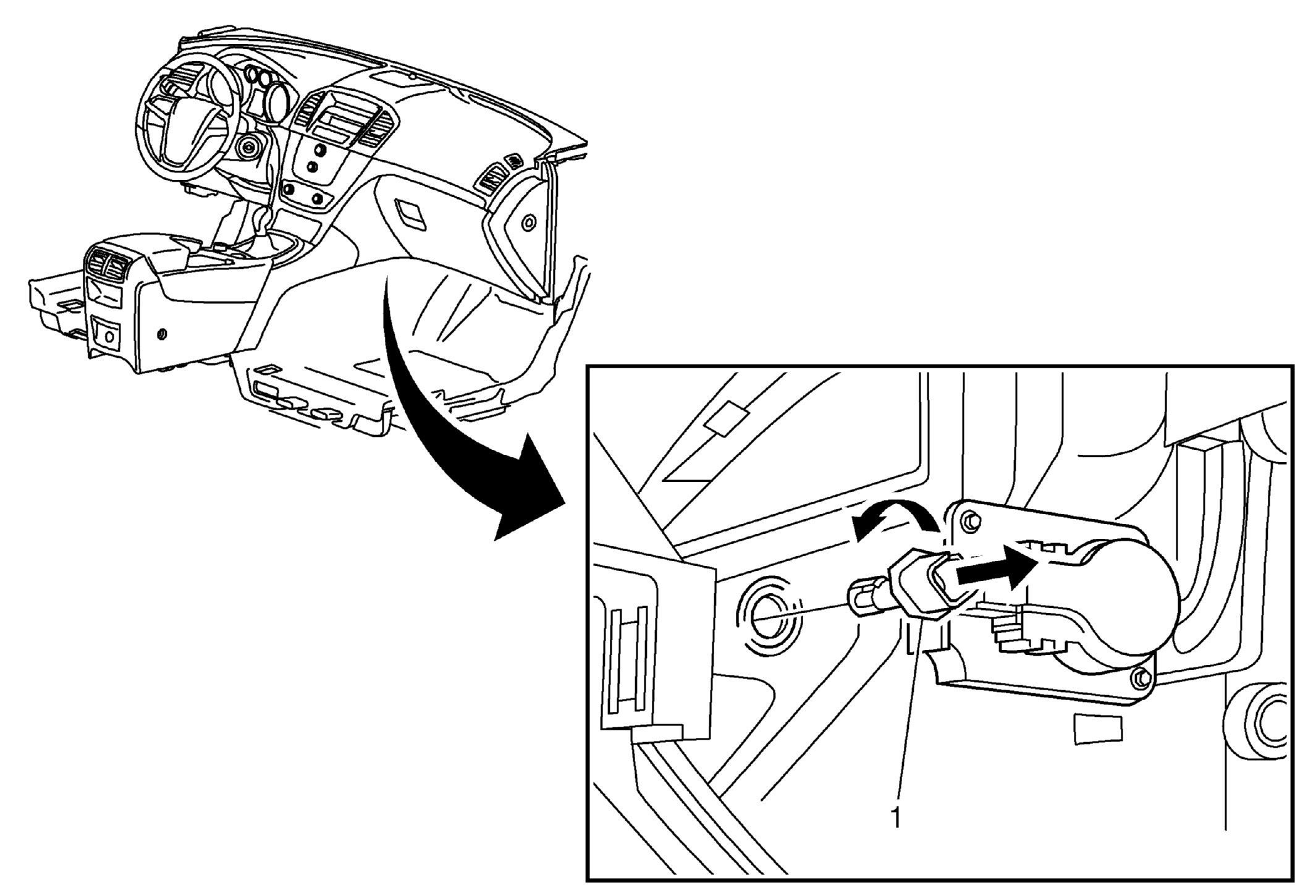

Fig 1: Duct Air Temperature Sensor - Lower Right Side (Left Hand Drive CJ2)
GM2020225Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
  2. Remove the floor air outlet duct right side. Refer to Floor Air Outlet Duct Replacement - Right Side .
1 Duct Air Temperature Sensor Lower Right Side

Procedure

  1. Disconnect the duct air temperature sensor electrical connector.
  2. Twist and pull the lower air temperature sensor from the HVAC module assembly.
