Duct Air Temperature Sensor Replacement - Lower Left Side (Left Hand Drive)

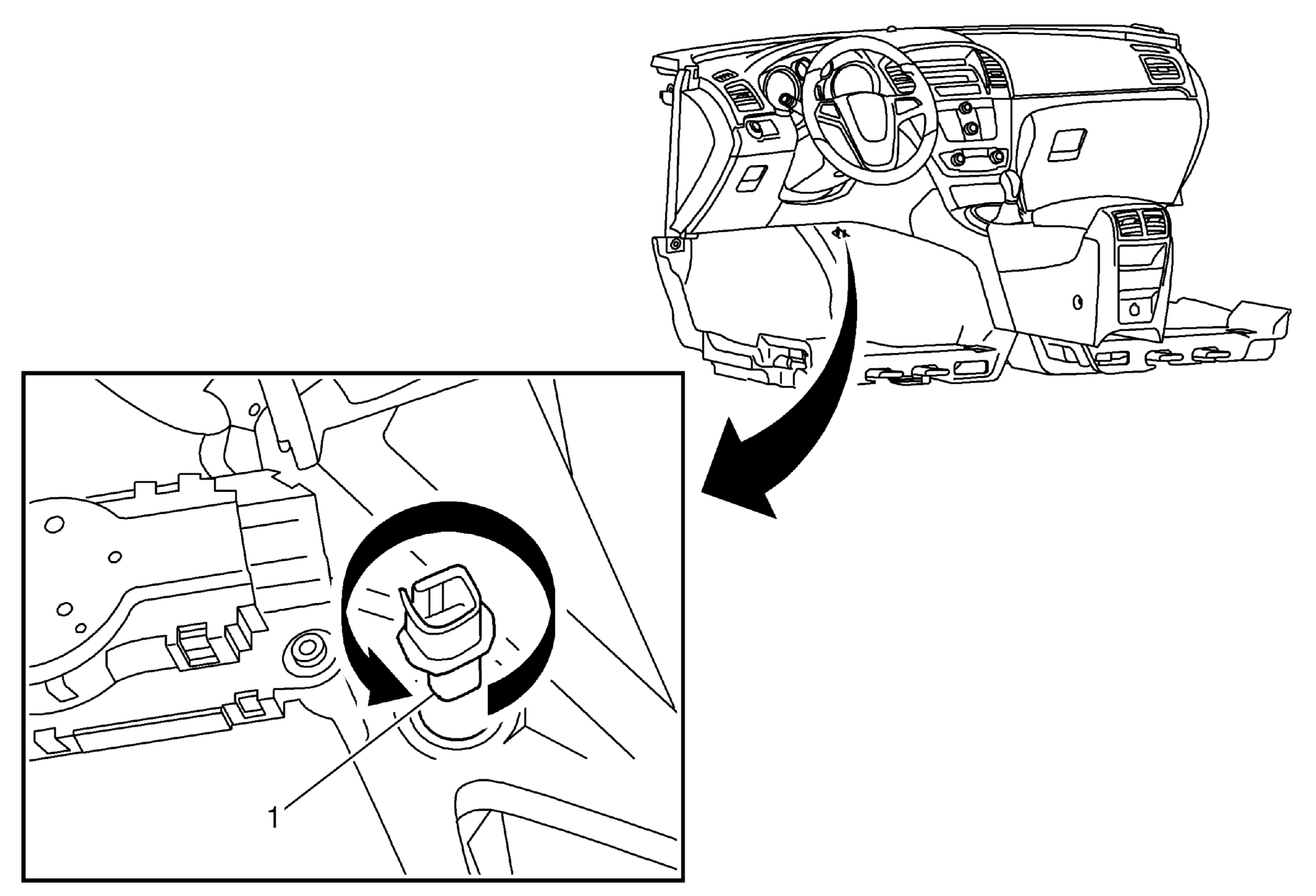

Fig 1: Duct Air Temperature Sensor - Lower Left Side (Left Hand Drive)
GM2020224Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel lower trim panel driver side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
  2. Remove the floor air outlet duct left side. Refer to Floor Air Outlet Duct Replacement - Left Side .
1 Duct Air Temperature Sensor Lower Left Side

Procedure

  1. Disconnect the duct air temperature sensor electrical connector.
  2. Twist and pull the lower air temperature sensor from the HVAC module assembly.
