Air Conditioning Refrigerant Temperature Sensor Replacement

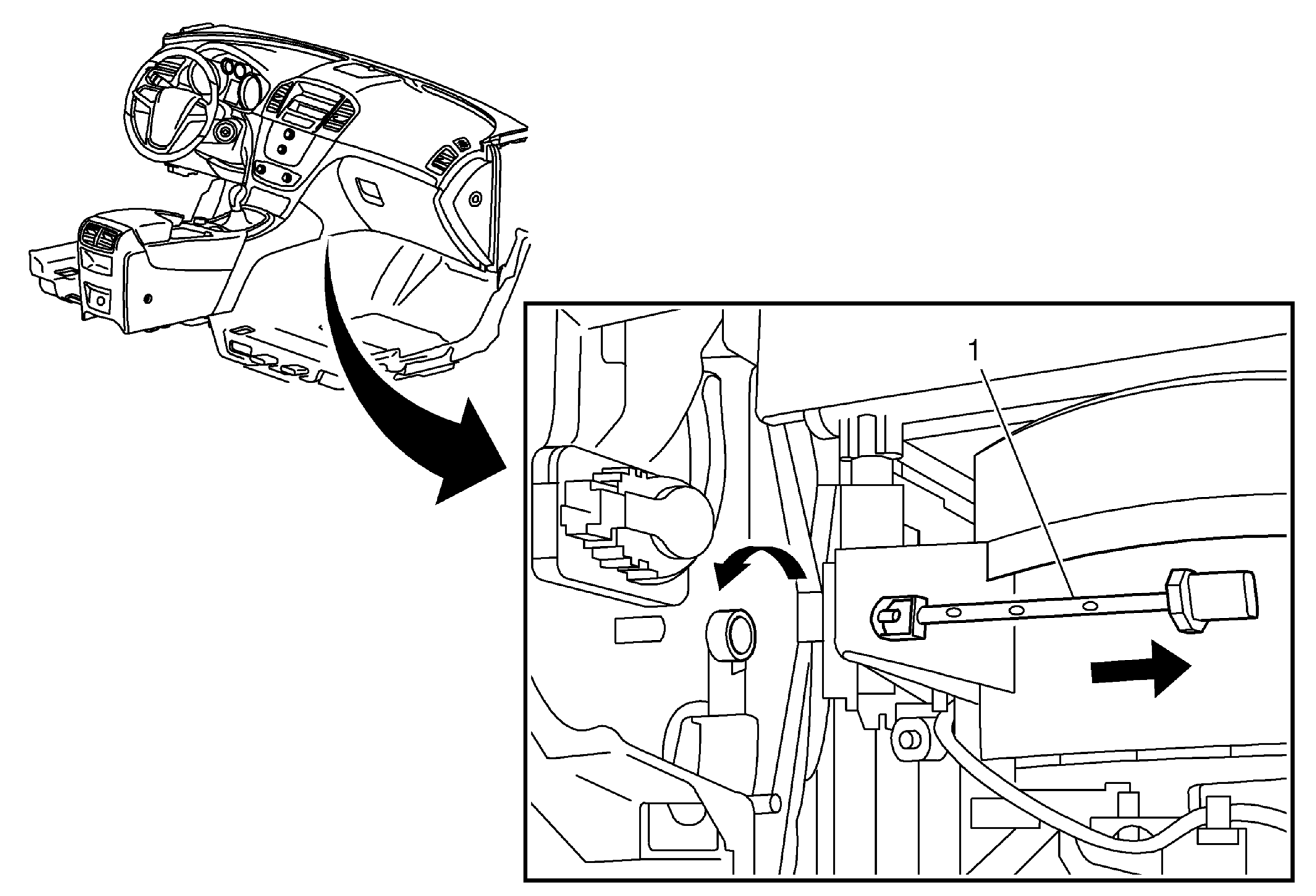

Fig 1: Air Conditioning Refrigerant Temperature Sensor
GM2020228Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
  2. Remove the floor air outlet duct - right side. Refer to Floor Air Outlet Duct Replacement - Right Side .
1 Air Conditioning Refrigerant Temperature Sensor

Procedure

  1. Disconnect the refrigerant temperature sensor electrical connector.
  2. Twist and pull the refrigerant temperature sensor from the HVAC module assembly.
