Transmission Mount Bracket Replacement - Left Side

WARNING: This page is about a different variant/trim than selected.

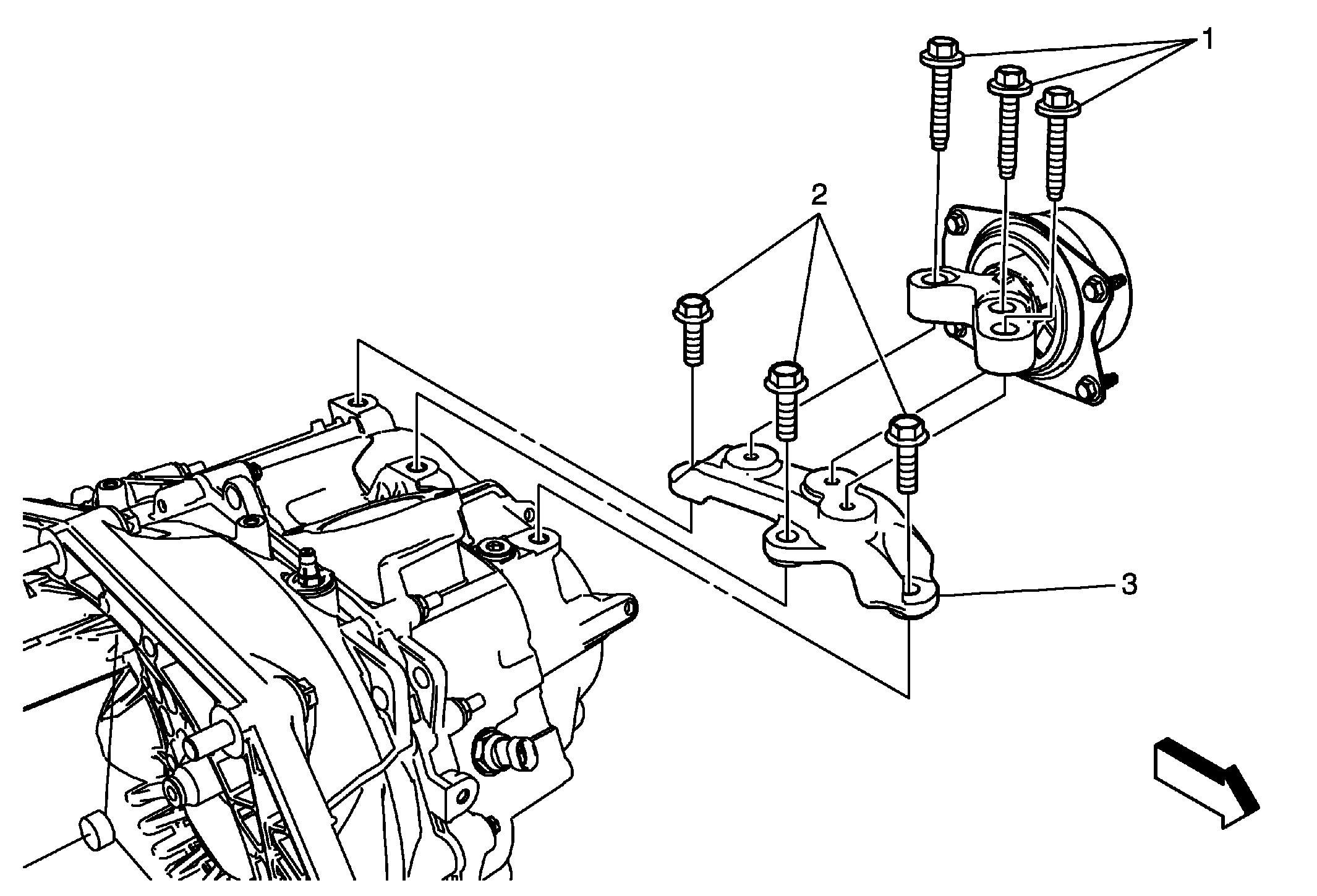

Fig 1: Transmission Mount Bracket - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Install the engine support fixture. Refer to Engine Support Fixture , for the 2.0L engine. Remove the battery tray. Refer to Battery Tray Replacement .
1	Transmission Mount Bracket to Mount Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Procedure Install NEW bolts. Tighten 50 N.m (37 lb ft) +60 degrees +15 degrees
2	Transmission Mount Bracket Fastener (Qty:3) Tighten 100 N.m (74 lb ft)
3	Transmission Mount Bracket NOTE: Adjust support fixture as necessary to allow bracket removal.
