Secondary Air Injection Pump Replacement (LEA, LUK)

WARNING: This page is about a different variant/trim than selected.

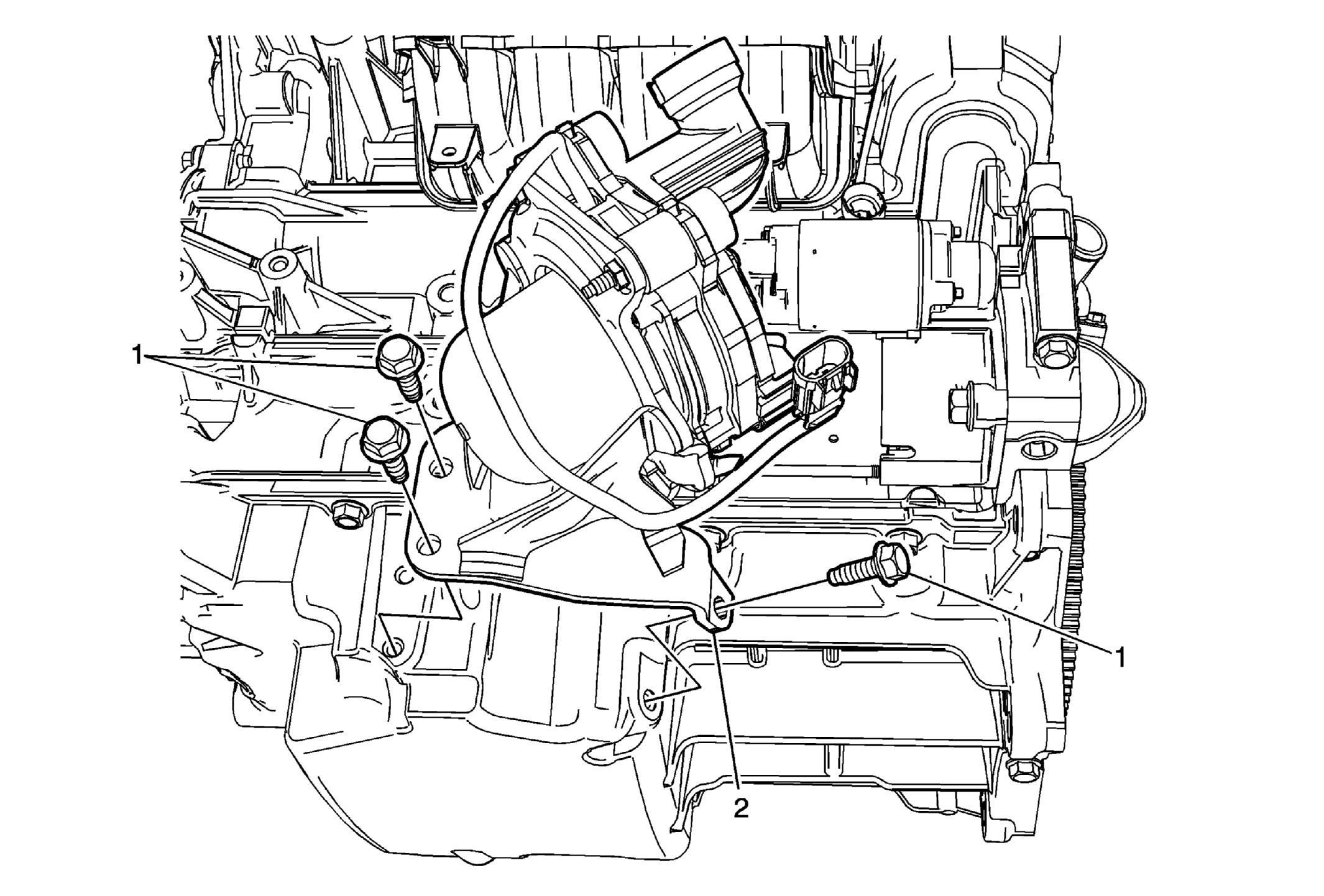

Fig 1: Secondary Air Injection Pump Replacement & Bolts
GM2094061Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Disconnect the secondary air injection pump inlet hose. Refer to Secondary Air Injection Pump Inlet Hose Replacement (LEA, LUK)
  2. Disconnect the secondary air injection check valve pipe. Refer to Secondary Air Injection Check Valve Pipe Replacement (LEA) Secondary Air Injection Check Valve Pipe Replacement (LUK)
1 Secondary Air Injection Pump Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
30 N.m (22 lb ft).
2 Secondary Air Injection Pump
