Secondary Air Injection Pump Inlet Hose Replacement (LEA or LUK)

WARNING: This page is about a different variant/trim than selected.

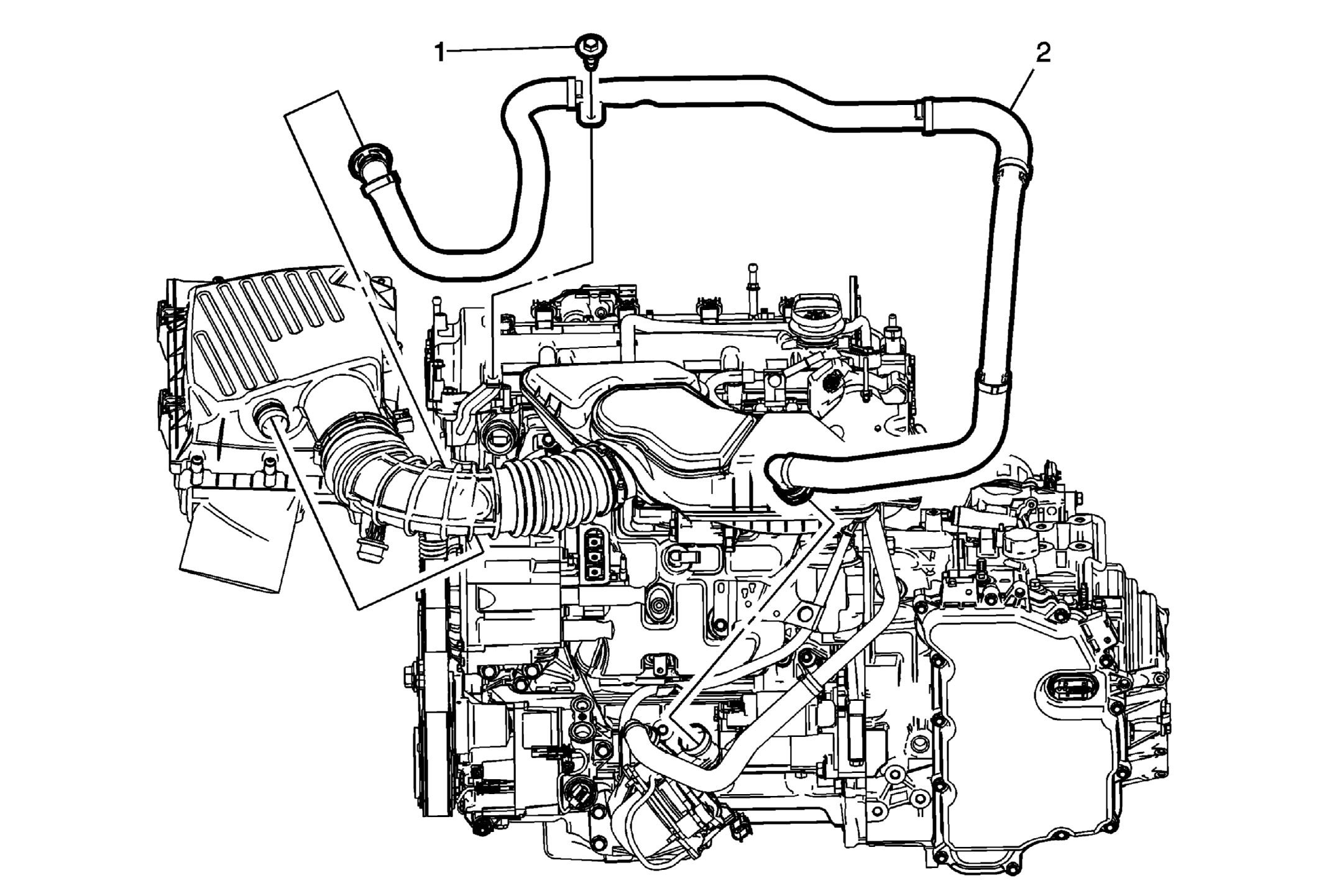

Fig 1: Secondary Air Injection Pump Inlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Secondary Air Injection Inlet Pump Hose Fastener CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft).
2	Secondary Air Injection Inlet Pump Hose Procedure Disconnect the quick connect fittings by squeezing both sides.
