Drive Motor Battery Cooling Blower Replacement

WARNING: This page is about a different variant/trim than selected.

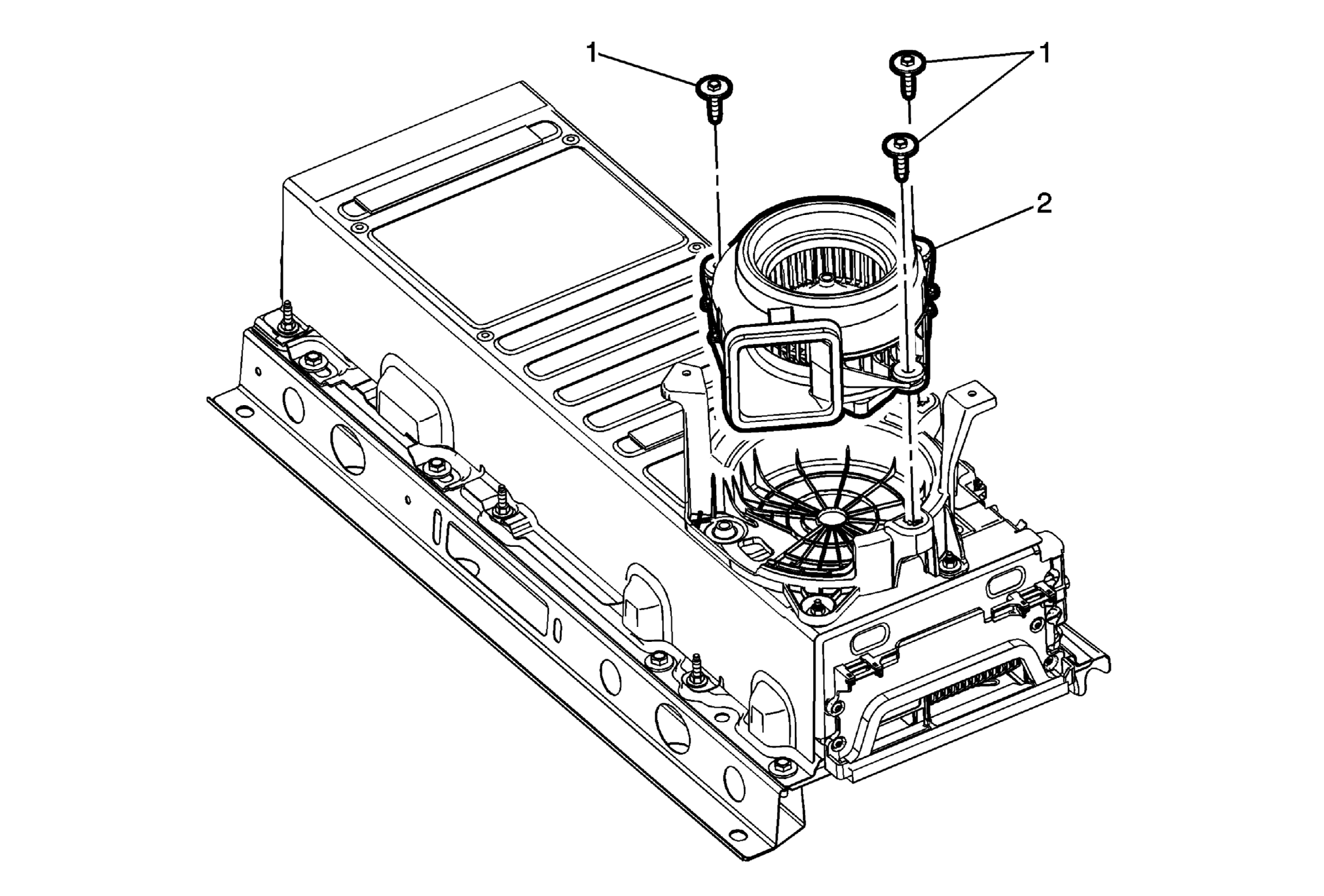

Fig 1: Drive Motor Battery Cooling Blower Motor & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the drive motor battery cooling blower outlet duct. Refer to Drive Motor Battery Cooling Air Outlet Duct Replacement . Remove the drive motor battery cooling air outlet duct. Refer to Drive Motor Battery Cooling Air Outlet Duct Replacement .
1	Drive Motor Battery Cooling Blower Motor Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Drive Motor Battery Cooling Blower Motor Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the drive motor battery cooling blower outlet duct. Refer to Drive Motor Battery Cooling Air Outlet Duct Replacement .
Remove the drive motor battery cooling air outlet duct. Refer to Drive Motor Battery Cooling Air Outlet Duct Replacement .

Drive Motor Battery Cooling Blower Motor Fastener (Qty:3)

CAUTION:

Tighten
9 N.m (80 lb in)

Drive Motor Battery Cooling Blower Motor
Procedure
Disconnect the electrical connector.
