Drive Motor Battery Cooling Air Outlet Duct Replacement
WARNING: This page is about a different variant/trim than selected.

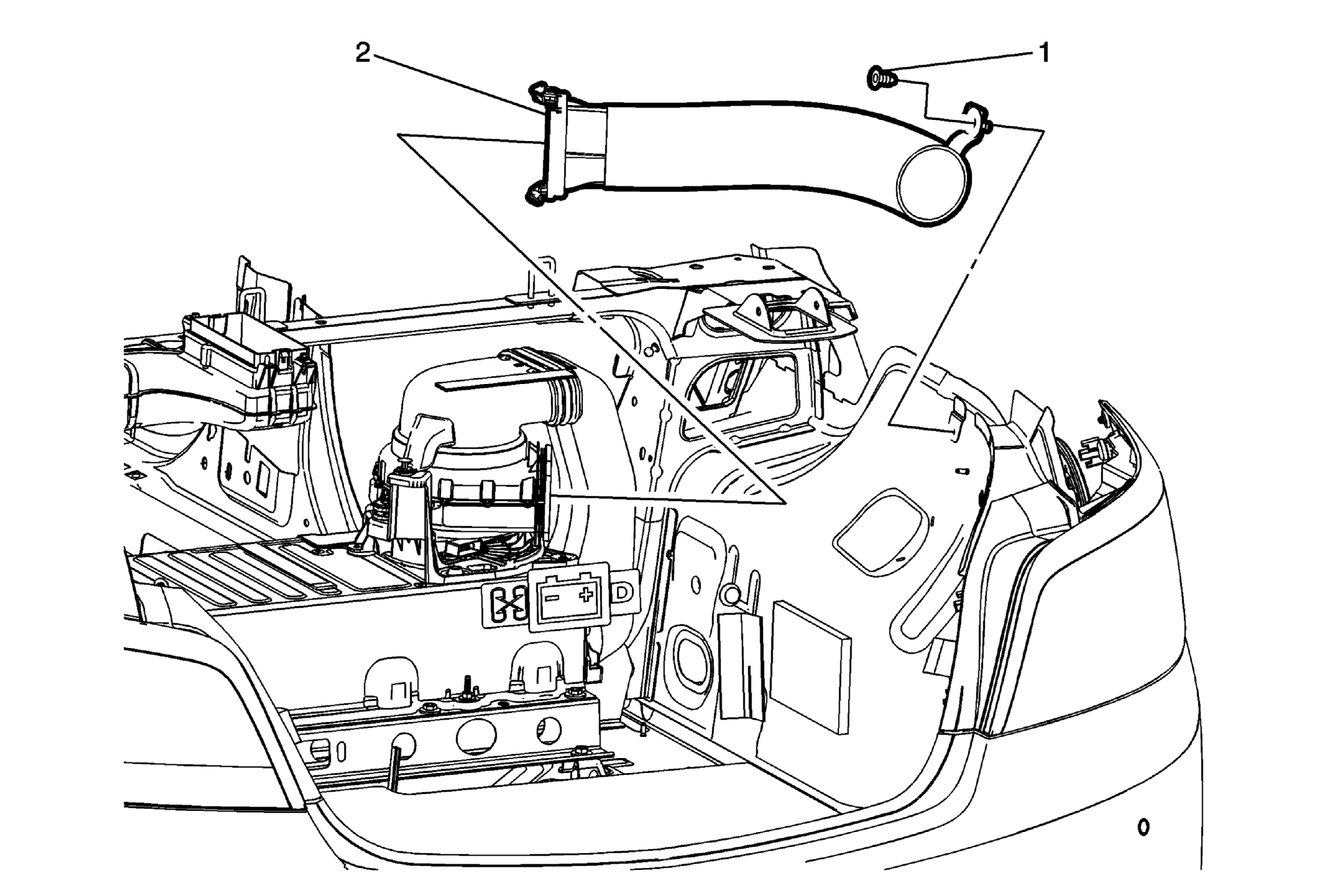

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right rear compartment side trim. Refer to Rear Compartment Side Trim Panel Replacement (HP6, Right Side) . |
|
| 1 | Drive Motor Battery Cooling Outlet Duct Fastener |
| 2 | Drive Motor Battery Cooling Outlet Duct |
