Drive Motor Battery Cooling Blower Outlet Duct Replacement
WARNING: This page is about a different variant/trim than selected.

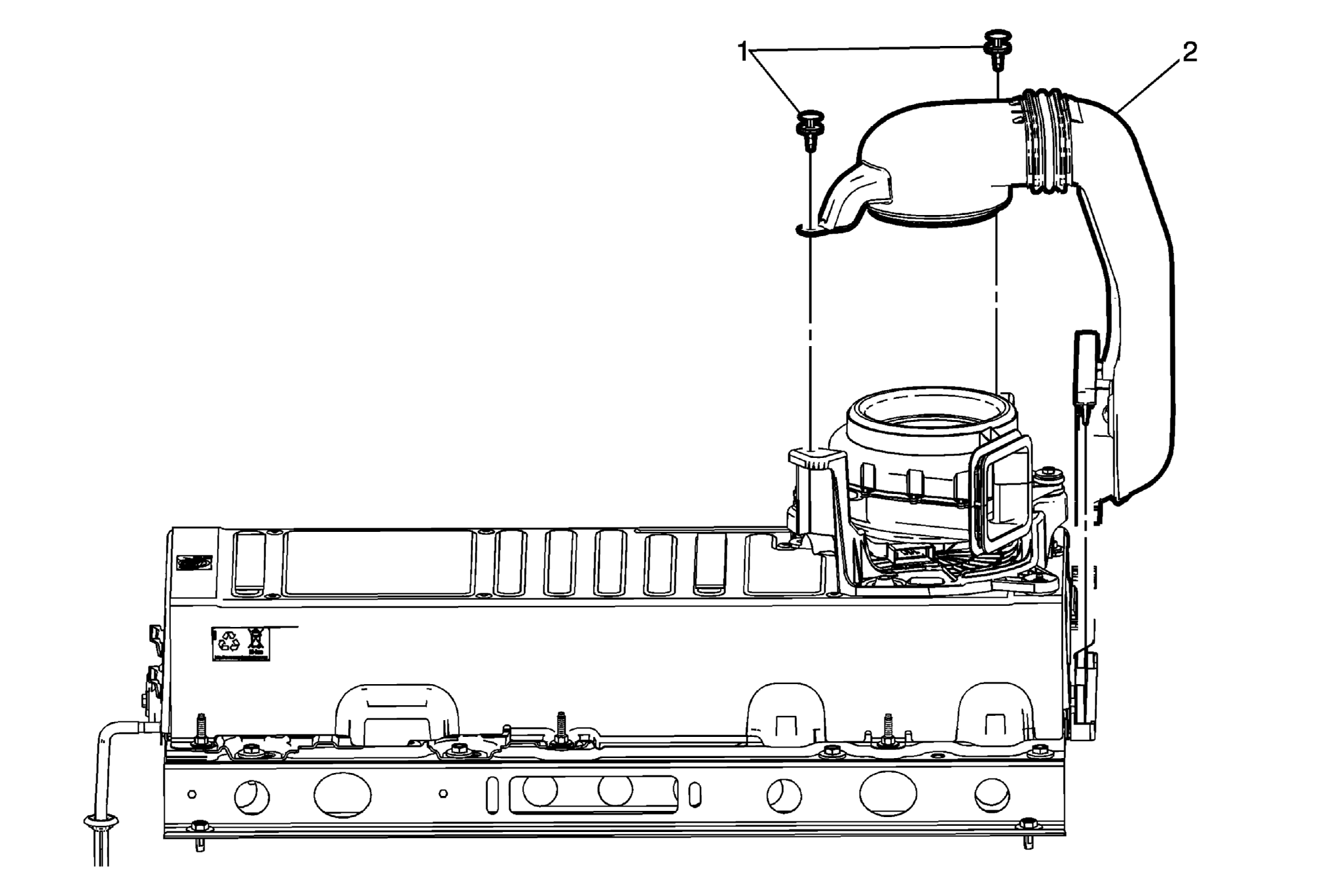

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear window panel storage compartment. Refer to Rear Window Panel Stowage Compartment Cover Replacement (with HP6) . |
|
| 1 | Drive Motor Battery Cooling Blower Outlet Upper Duct Fastener (Qty:2) |
| 2 | Drive Motor Battery Cooling Blower Outlet Upper Duct |
